Nell OXI DS100A Disposable Spo2 Sensor with Non-woven Adhesive for Mindray SpO2 Monitor
Description
Nell OXI DS100A Disposable Spo2 Sensor with Non-woven adhesive for Mindray SpO2 Monitor
1. Product Description:
|
Compatible Brand |
|
||
|
Sensor Type |
Adult Finger, Pediatric Finger, Adult Soft Tip, Pediatric Soft Tip, Infant Soft Tip, Neonate Wrap,Multi-site, Adult Ear Clip, Adult/Neo. Wrap,Pediatric/Inf. Wrap |
||
|
Probe House |
ABS shell (finger clip); Silicon rubber boot(soft and multi-site) |
||
|
Cable Material |
TPU Light Gray jacket, 4.0mm diameter |
Sensor Connector |
Plastic adapter with gold plated pins |
|
LED |
660nm/905nm/940nm |
Photo Detector |
4mm² /8mm²(size) |
|
Cable Length |
1.1m/1.5m/3m |
Package |
1pc in one ziplock bag |
2. Product Technical Parameters:
|
LED |
Red |
660nm normal |
|
Infrared |
880/905/940nm normal |
|
|
Text Range |
Oxygen Saturation(%SpO2) |
0% to 100% |
|
Pulse Rate(bpm) |
30 to 245 |
|
|
Accuracy |
SpO2 |
±1%(90~100%) |
|
±2%(80~90%) |
||
|
±3%(below 70%) |
||
|
Pulse Rate |
±2bpm(30-250bpm) |
|
|
Storage and Transport Environment |
-10℃~+40℃ |
|
|
Operating Temperature |
±5℃~+40℃ |
|
|
Operating/Storage/Transportation Humidity |
0%-80% |
|
|
Hyperbaric Pressure |
86kPa-106kPa |
|

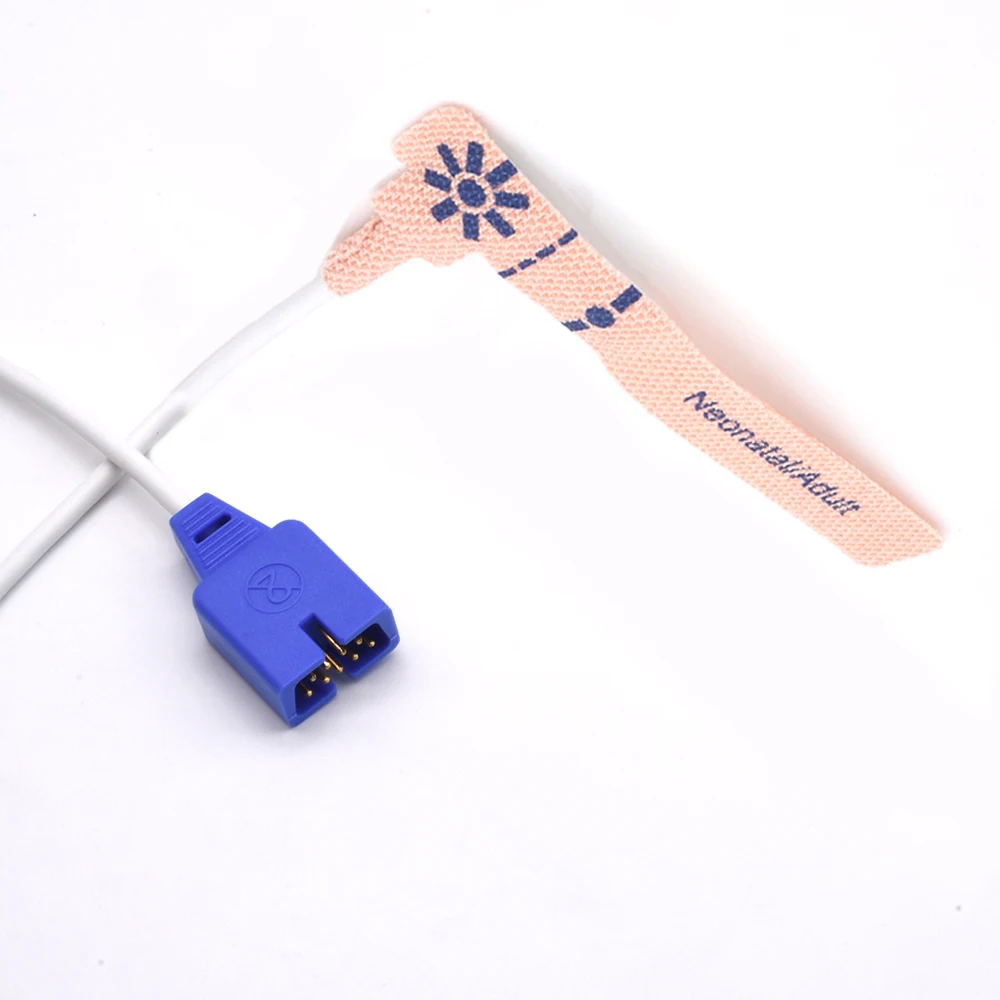

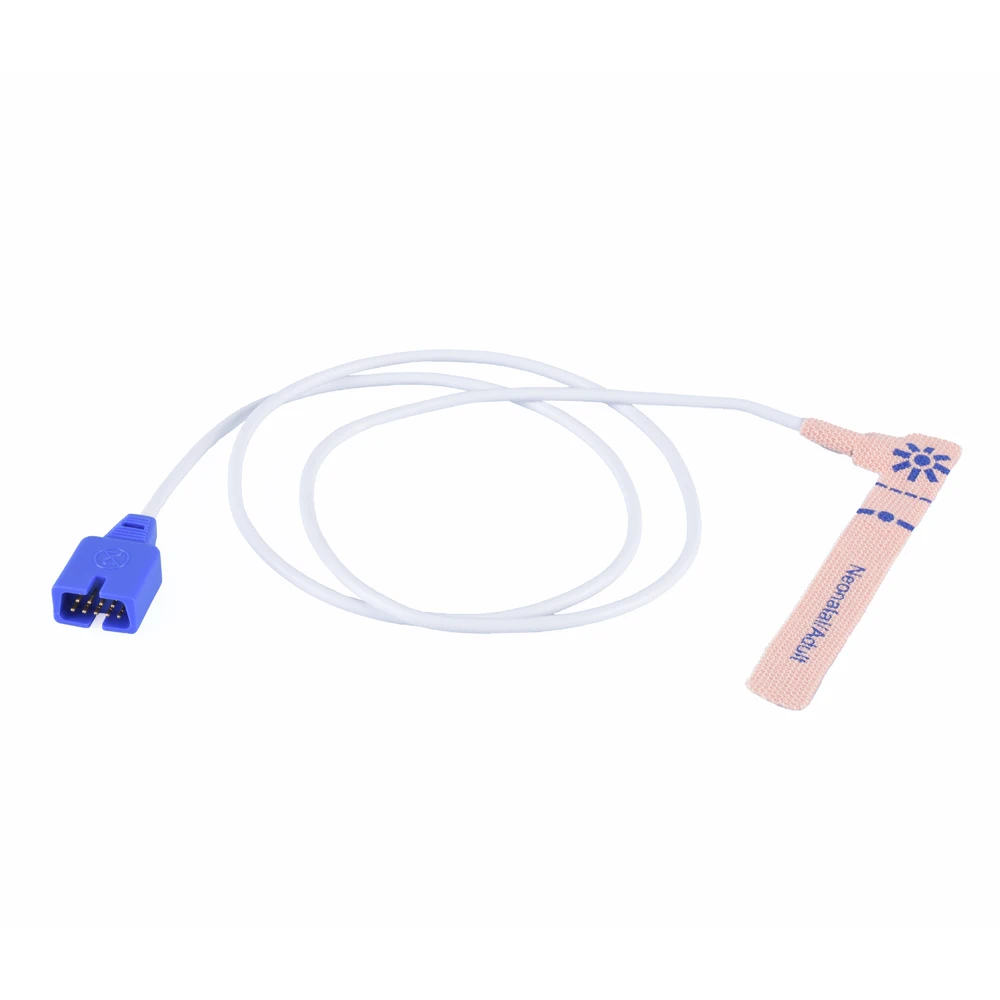

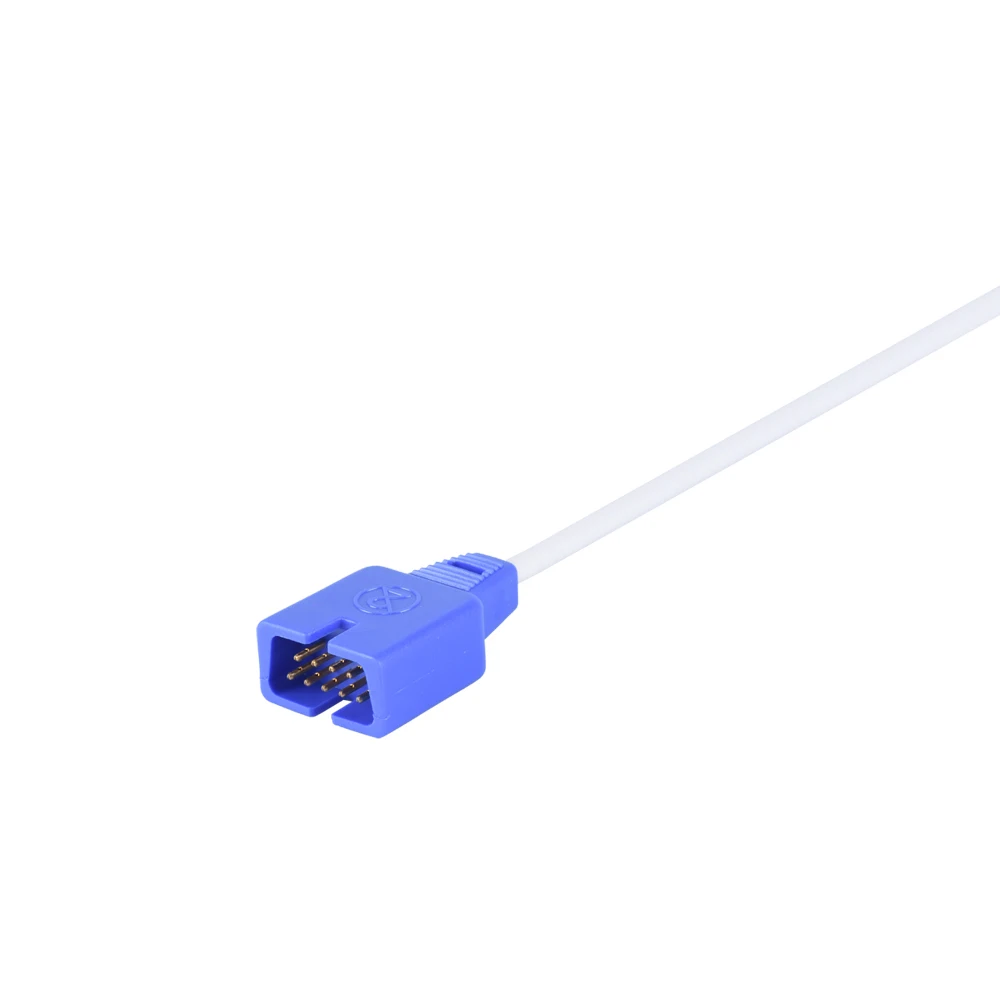

3. Caremed Product Pictures:
