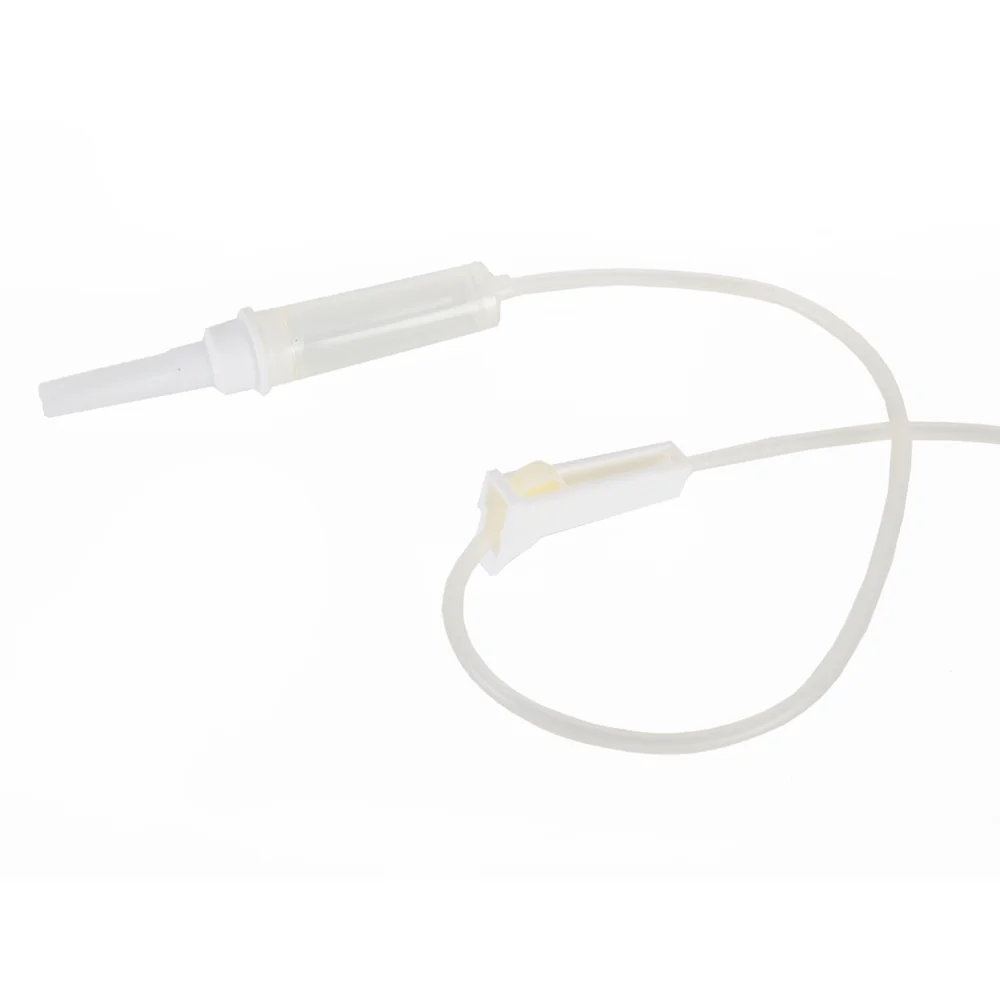

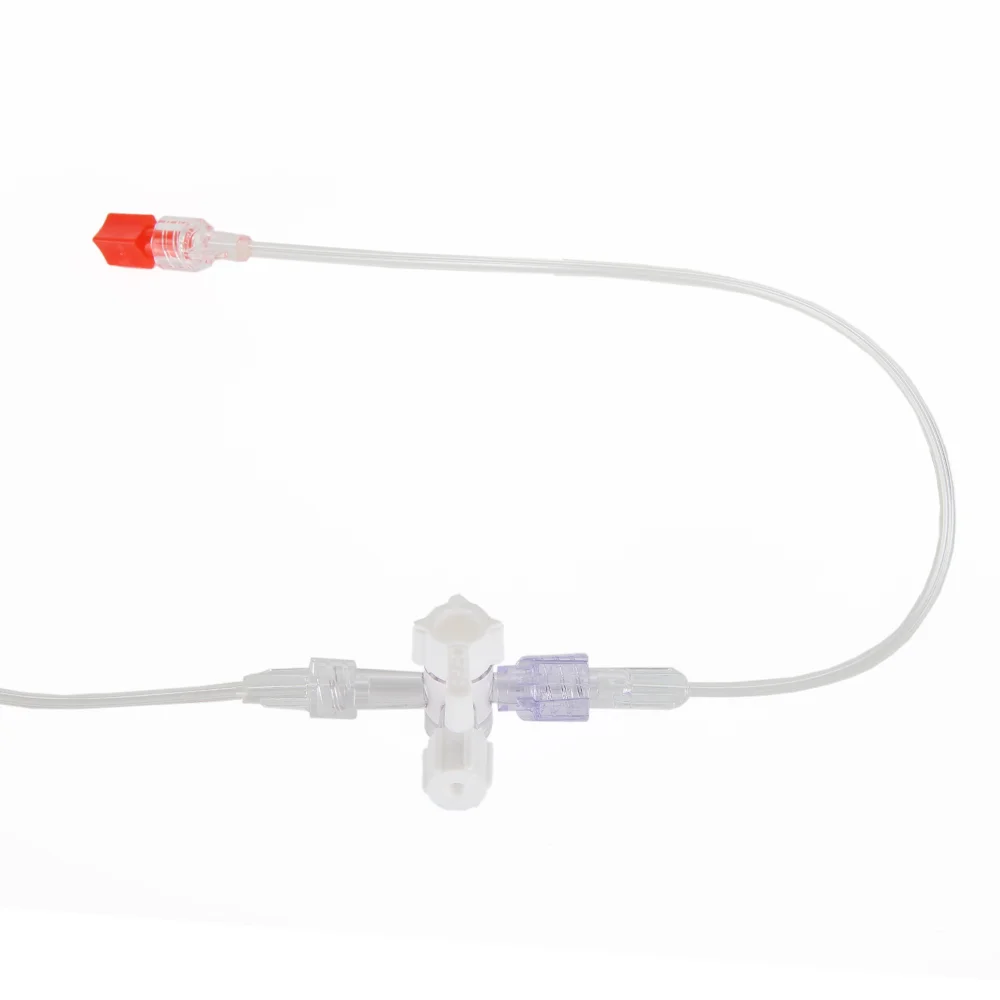

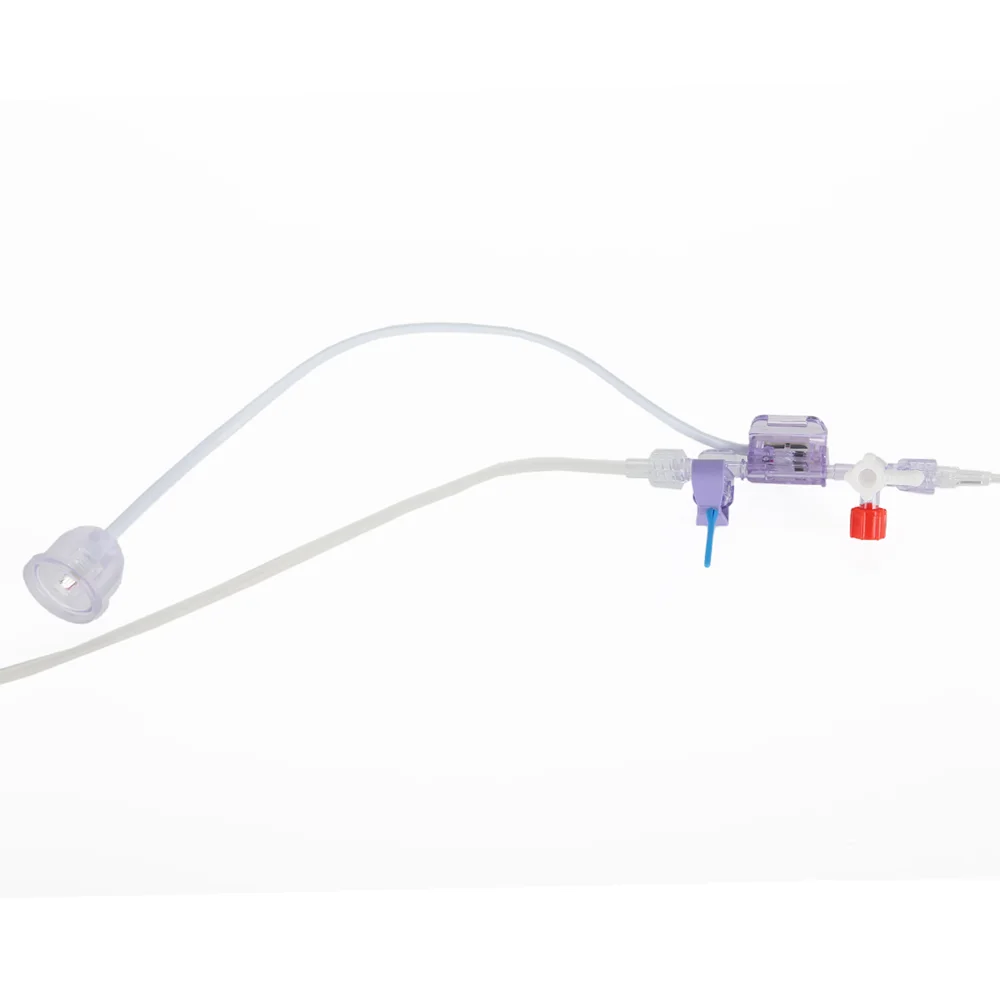

Medical Invasive Blood Pressure Transducer Abbott Connector Compatible 42585-05 IBP Disposable Transducer

Medical Invasive Blood Pressure Transducer Abbott Connector Compatible 42585-05 IBP Disposable Transducer

OEM Part Number Cross References:

Specification:

Disposable Pressure Transducer
Barometric pressure: 70~106Kpa
Relative humidity: 10~90% (non-condensing)
Operating pressure range: -50 ~ + 300 mmHg
Sensitivity: 5.0μV/V/mmHg ±3%
Nonlinearity and hysteresis: full-scale reading±1.5%
Input impedance: 1200Ω ~3200Ω
Output impedance: 300±5%
Zero pressure offset: -20mmHg~+20mmHg
Thermal offset shift: ≤±0.3mmHg/°C
Offset drift: After warm-up for 20 seconds, drift within 2 mmHg within 8 hours
Thermal span shift: ≤±0.1%/°C
Frequency response: Standard pressure set (48 "/ 12") is 40 Hz; Separate sensor > 200 Hz
Defibrillator withstand: Defibrillation depends on the final connection of the equipment.
Leakage current: Leakage current is dependent on the final connection of the equipment
Overpressure load: -400~+4000mmHg
Shock resistance : Withstand falling from one meter for three times
Light sensitivity: When exposed to a 3400°K tungsten light, candle light at 3000 feet, it's less than 1 mmHg

We can provide top quality HP, GE, MEK,Datex, Mindray,Biolight,Nihon Kohden,Siemens,Spacelabs,Kontron,Datascope,ect ECG cable with AHA/ IEC standard, if there is any item you are in need of, please contact me! I’ll be more than pleasure to offer the information you want.

   Packaging & Shipping

Packaging: Wrap with transparent PE plastic bag,each bag with 1 piece, then put into outer box

Delivery time:

1.48 hours for sample order,3-7 days for bulk order.

2.Customized products negotiation.

  Our Main Products

 1. Spo2 sensr,Spo2 Adapter Cable

 2. ECG Cable,EKG Cable

 3. IBP Cable ,EEG Cable

 4. Ultrasound Probe

 5. NIBP Cuff$Tubes

 6. Temperature Probe

 7. Blood Pressure Transducer

 8. Fetal Transducer

 9. CTG belt

  Our Advantage

1.High quality and competitive price;

2.Standard packing and timely delivery;

3.We supply OEM/ODM service;

4.Sample Order and Small Order are acceptable;

5.We are a professional manufacturer in China.

6.We have CE and ISO certificate

7.The methods of delivery: DHL,EMS,UPS or Fedex (fast and safer)

8.All products are shifting one-year warranty and three months guarantee for replacement
