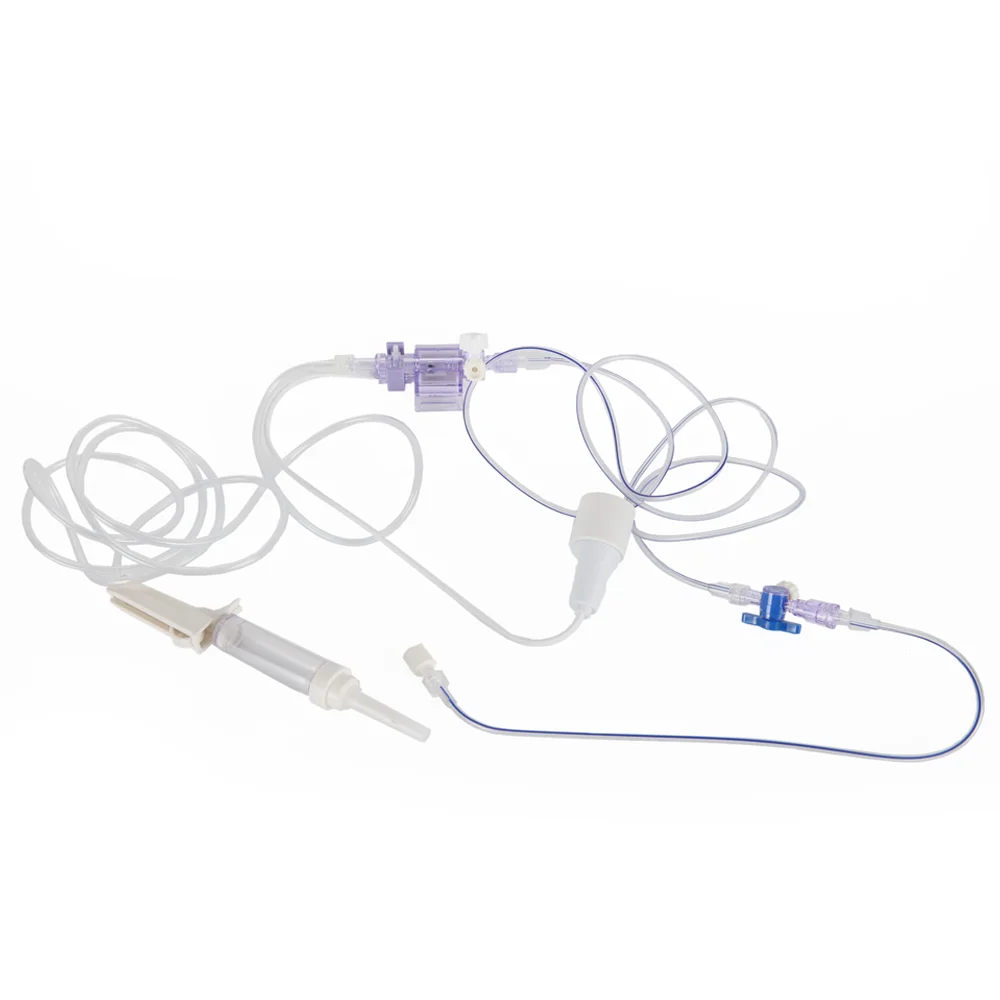

Medical IBP Disposable Pressure Transducer, Edwardss Connector Compatible for DRE P01733 IBP Disposable Transducer

Medical IBP Disposable Pressure Transducer, Edwardss Connector Compatible for DRE P01733 IBP Disposable Transducer

OEM Part Number Cross References:

Disposable Pressure TransducerSpecification:

Barometric pressure: 70~106Kpa
Relative humidity: 10~90% (non-condensing)
Operating pressure range: -50 ~ + 300 mmHg
Sensitivity: 5.0μV/V/mmHg ±3%
Nonlinearity and hysteresis: full-scale reading±1.5%
Input impedance: 1200Ω ~3200Ω
Output impedance: 300±5%
Zero pressure offset: -20mmHg~+20mmHg
Thermal offset shift: ≤±0.3mmHg/°C
Offset drift: After warm-up for 20 seconds, drift within 2 mmHg within 8 hours
Thermal span shift: ≤±0.1%/°C
Frequency response: Standard pressure set (48 "/ 12") is 40 Hz; Separate sensor > 200 Hz
Defibrillator withstand: Defibrillation depends on the final connection of the equipment.
Leakage current: Leakage current is dependent on the final connection of the equipment
Overpressure load: -400~+4000mmHg
Shock resistance : Withstand falling from one meter for three times
Light sensitivity: When exposed to a 3400°K tungsten light, candle light at 3000 feet, it's less than 1 mmHg

We can provide top quality HP, GE, MEK,Datex, Mindray,Biolight,Nihon Kohden,Siemens,Spacelabs,Kontron,Datascope,ect ECG cable with AHA/ IEC standard, if there is any item you are in need of, please contact me! I’ll be more than pleasure to offer the information you want.

   Packaging & Shipping

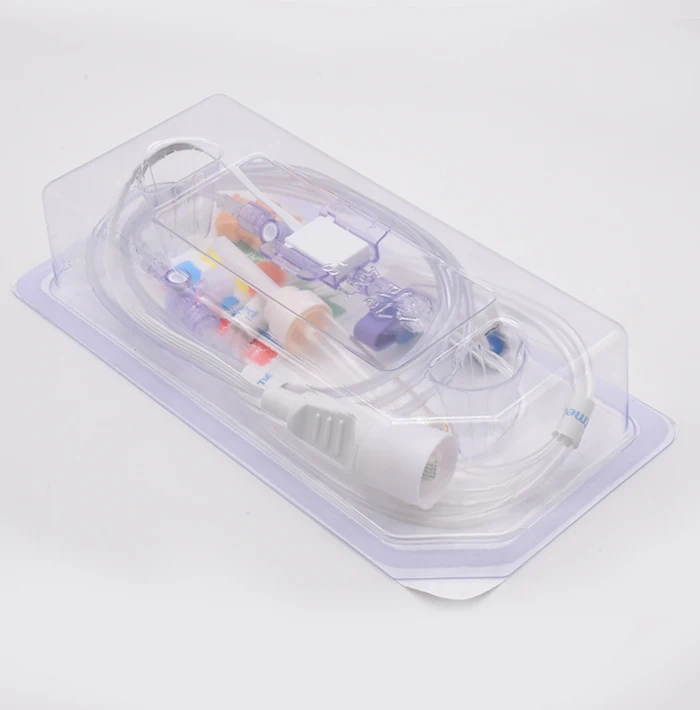

Packaging: Wrap with transparent PE plastic bag,each bag with 1 piece, then put into outer box

Delivery time:

1.48 hours for sample order,3-7 days for bulk order.

2.Customized products negotiation.

  Our Main Products

 1. Spo2 sensr,Spo2 Adapter Cable

 2. ECG Cable,EKG Cable

 3. IBP Cable ,EEG Cable

 4. Ultrasound Probe

 5. NIBP Cuff$Tubes

 6. Temperature Probe

 7. Blood Pressure Transducer

 8. Fetal Transducer

 9. CTG belt

  Our Advantage

1.High quality and competitive price;

2.Standard packing and timely delivery;

3.We supply OEM/ODM service;

4.Sample Order and Small Order are acceptable;

5.We are a professional manufacturer in China.

6.We have CE and ISO certificate

7.The methods of delivery: DHL,EMS,UPS or Fedex (fast and safer)

8.All products are shifting one-year warranty and three months guarantee for replacement
