Medical Compatible with Nihon Kohden MSM 2301K Disposable Neonatal SPO2 Probe GZ-130P Pulse Oxygen Sensor
Description
Medical Compatible with Nihon Kohden MSM 2301K disposable Neonatal SPO2 probe GZ-130P Pulse Oxygen sensor
1. Product Description:
OEM Part Number Cross References:
| Manufacturer | OEM Part # |
|---|---|
| AMC | PR-E610-1013P (Microfoam sensor) |
| Envitec | DP-2203-2, DP-2203-2S |
| Nihon Kohden | TL-252T, TL-272T3 (P203F / P204F 5 pcs / 1.6 m), TL-272T (P203B / P204B 5 pcs / 0.8 m) |
Compatibility:
| Manufacturer | Model |
|---|---|
| Nihon Kohden |
2303 Life Scope I, 2303K, 2353 Life Scope L, 4103 TL-101T, 4111, 4113 Life Scope P, 5135 Life Scope A, BSM 2350 Life Scope L, BSM 4101, BSM-2300 Life Scope I, BSM-2301, BSM-230K, BSM-2351, BSM-4100 Life Scope P, BSM-5100 Life Scope A, BSM-5105, BSM-6000 series, BSM-6301K, BSM-6501K, BSM-6701K, BSM-9510 Life Scope M, BSM-9800 Life Scope S, GZ-130P, Life Scope TR, MSM 2301K, NTX ZM-540/541P, Oxipal P225F and Hamilton G5/S1, ZM-520-PA, ZM-521-PA, ZM-530-PA, ZM-531-PA, ZM-900 Series Transmitters
|
|
Compatible Brand |
Nihon Kohden |
||
|
Sensor Type |
Adult, Pediatric, Infant, Neonate; Blue Foam Non-adhesive, 3M Non-woven Adhesive, 3M White Foam Adhesive. |
||
|
Cable Material |
white PVC jacket, 3.2mm diameter |
Sensor Connector |
Plastic adapter with gold plated pins |
|
LED |
660nm/905nm/940nm |
Photo Detector |
4mm² /8mm²(size) |
|
Cable Length |
0.9m |
Package |
1pc in one ziplock bag |
2. Product Technical Parameters:
|
LED |
Red |
660nm normal |
|
Infrared |
880/905/940nm normal |
|
|
Text Range |
Oxygen Saturation(%SpO2) |
0% to 100% |
|
Pulse Rate(bpm) |
30 to 245 |
|
|
Accuracy |
SpO2 |
±1%(90~100%) |
|
±2%(80~90%) |
||
|
±3%(below 70%) |
||
|
Pulse Rate |
±2bpm(30-250bpm) |
|
|
Storage and Transport Environment |
-10℃~+40℃ |
|
|
Operating Temperature |
±5℃~+40℃ |
|
|
Operating/Storage/Transportation Humidity |
0%-80% |
|
|
Hyperbaric Pressure |
86kPa-106kPa |
|

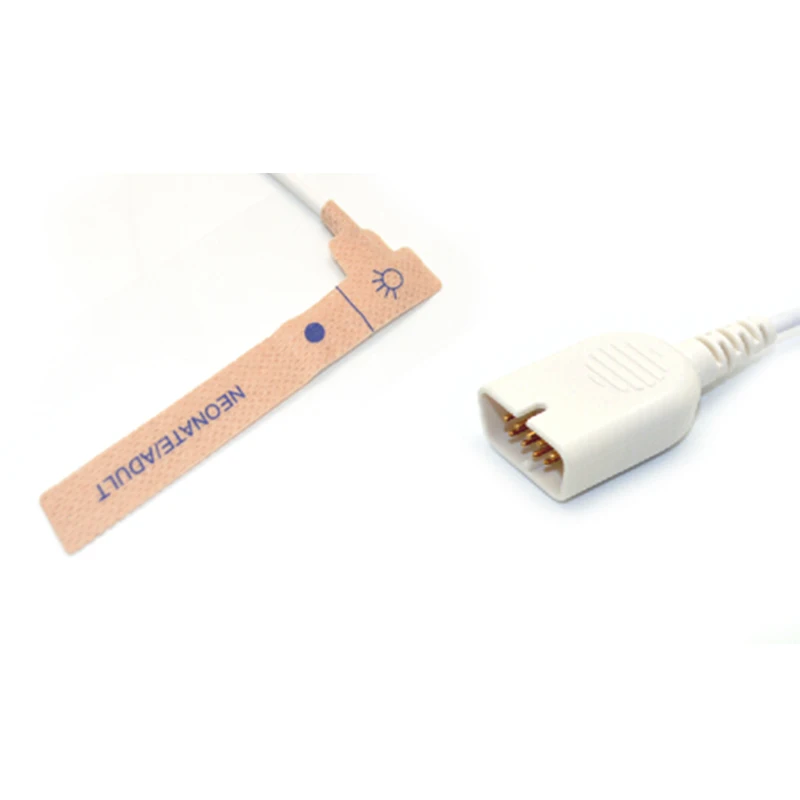

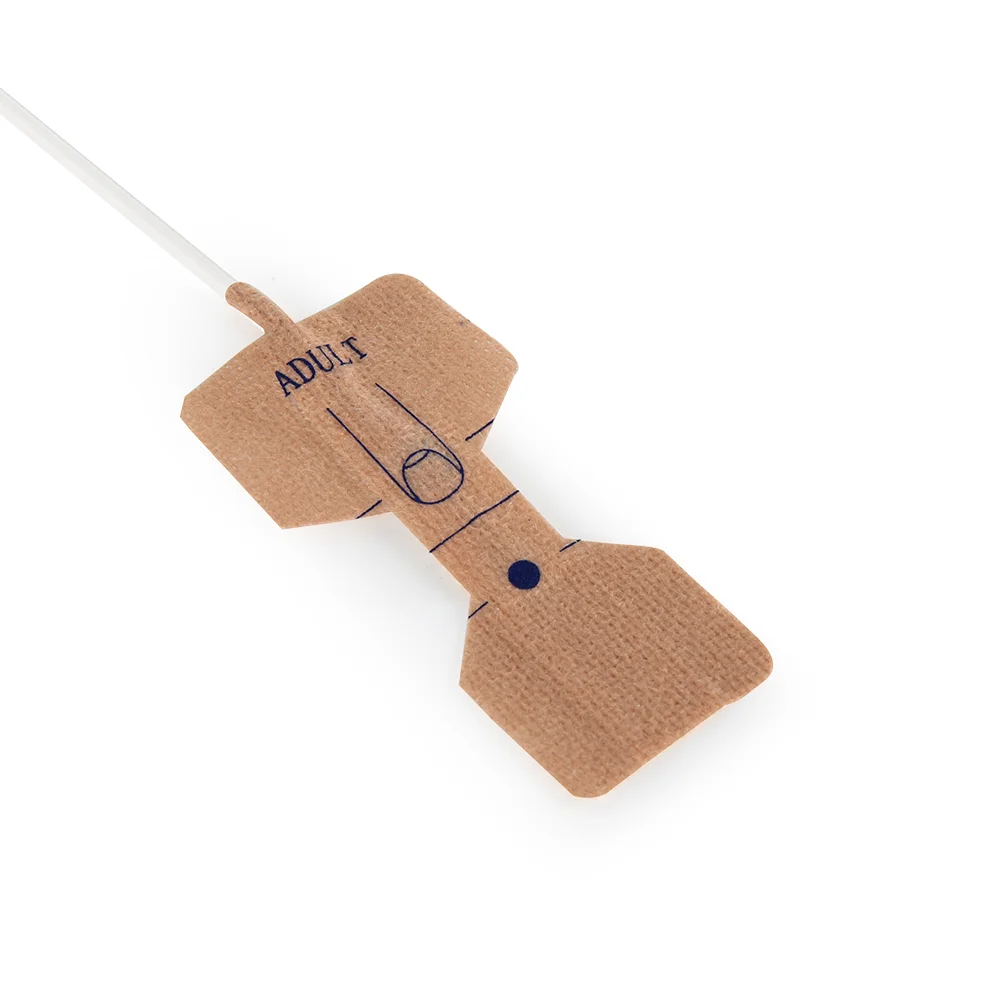

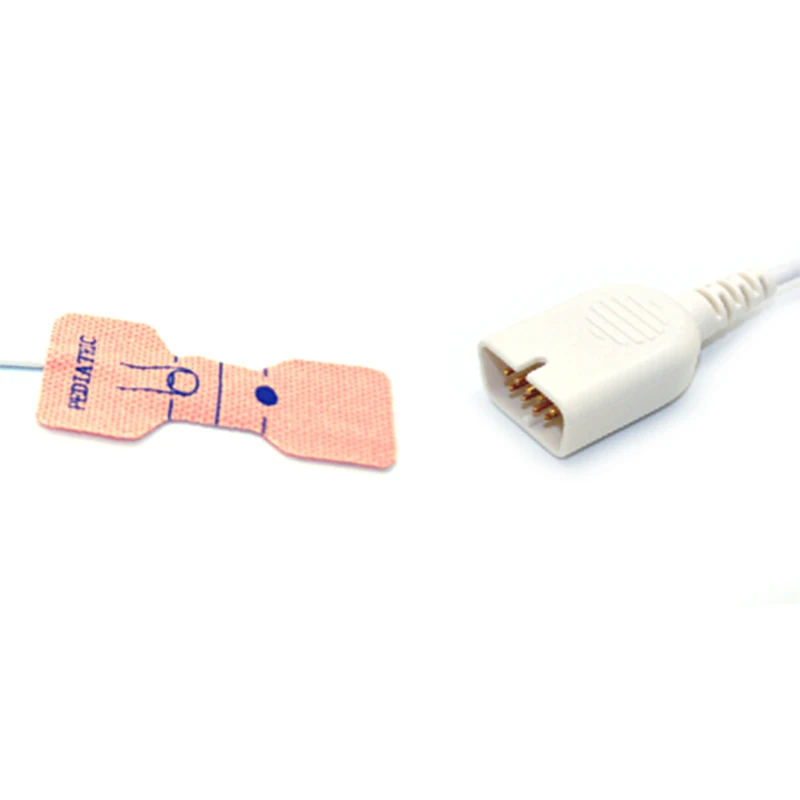

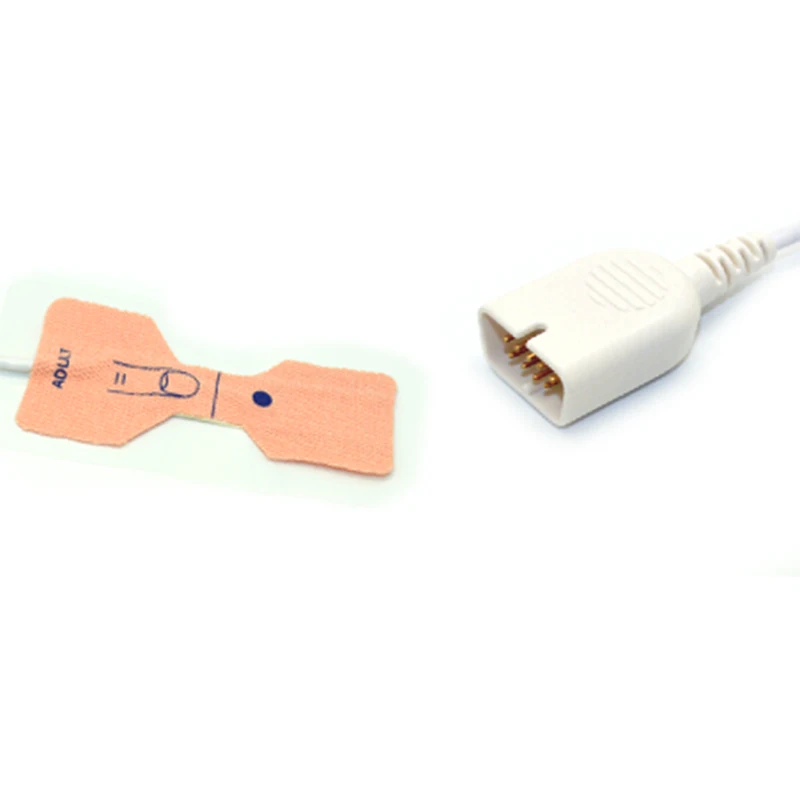

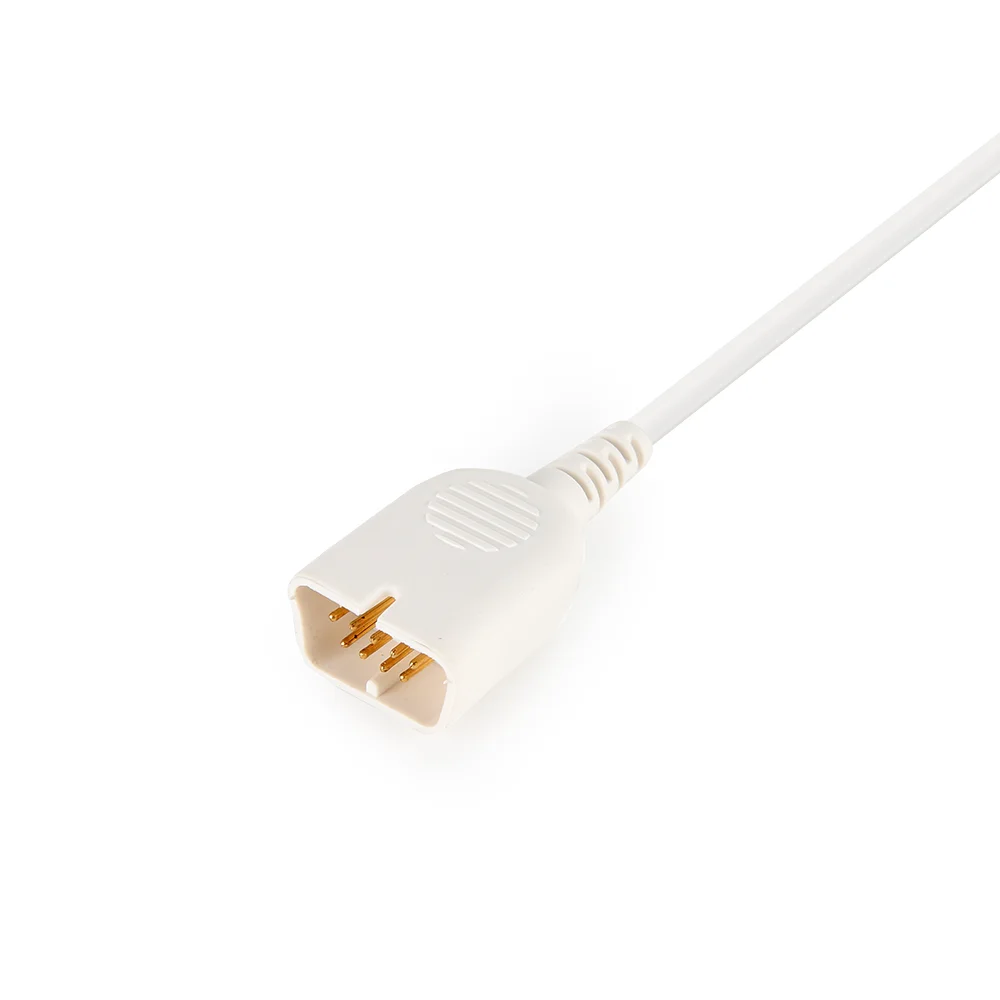

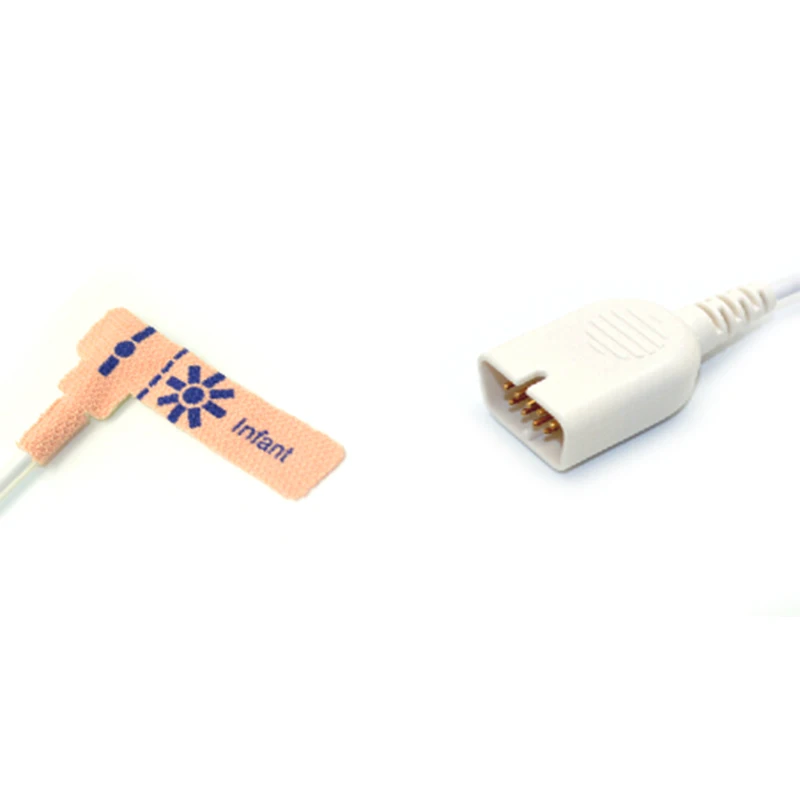

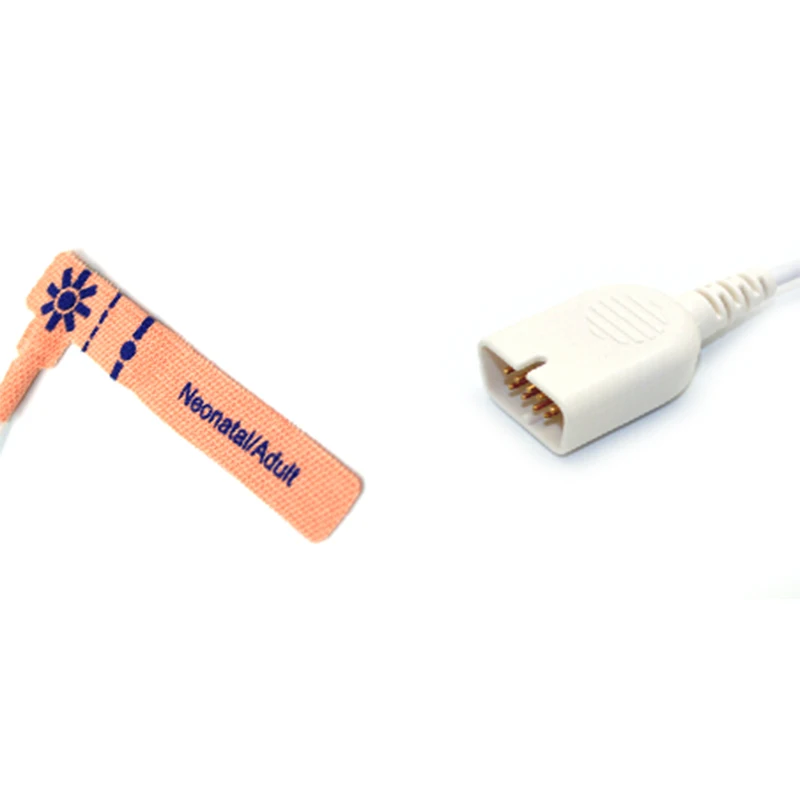

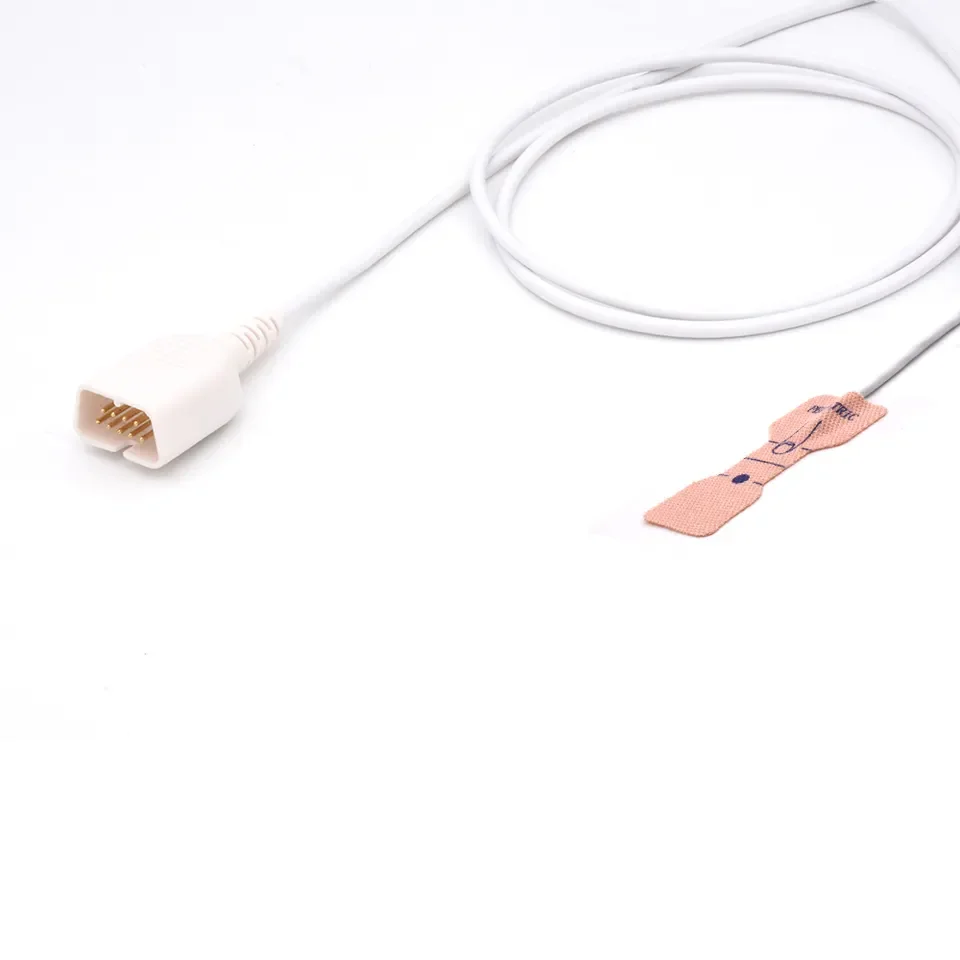

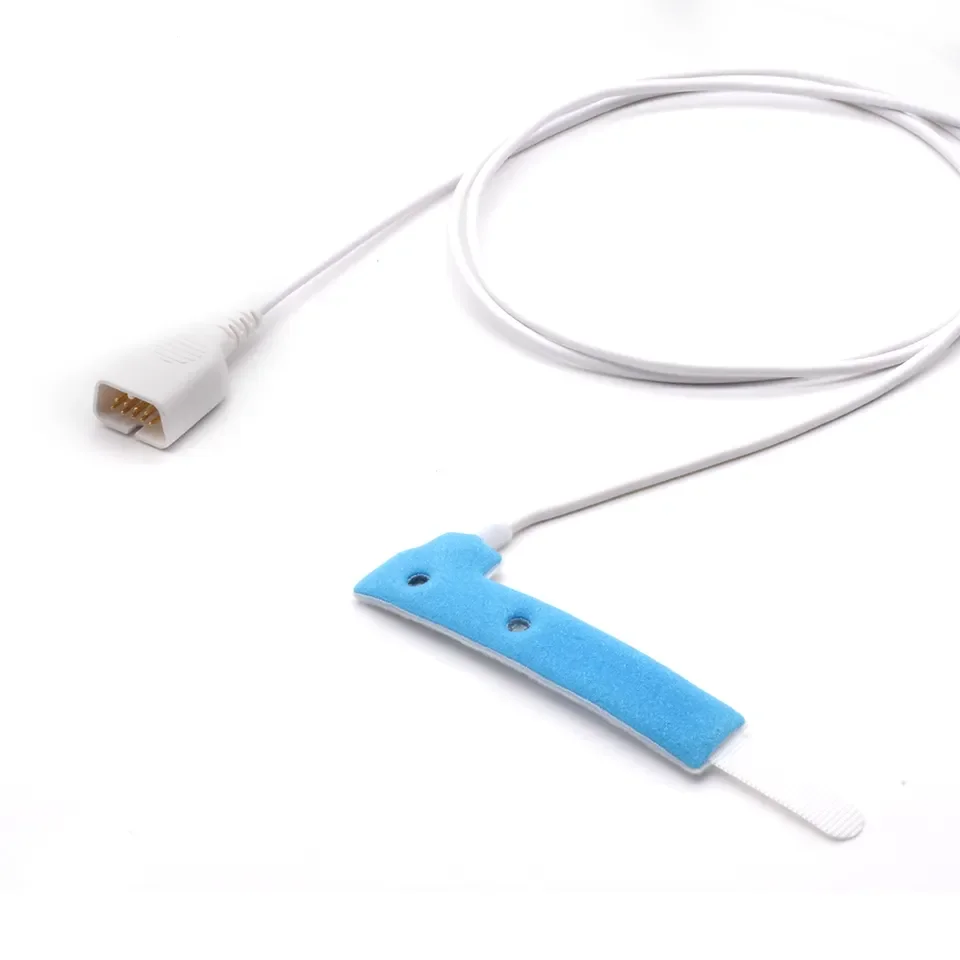

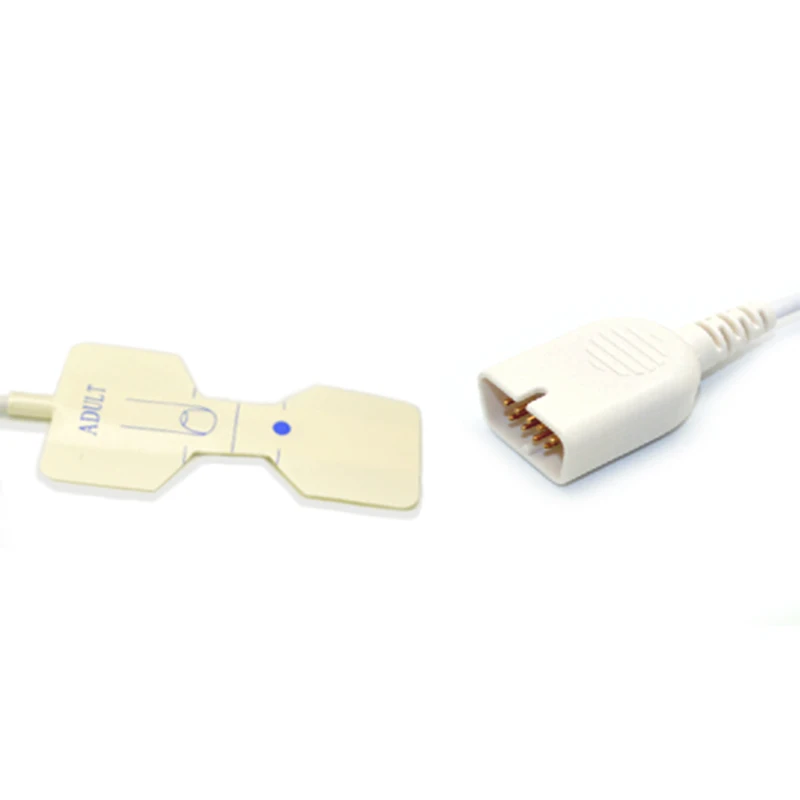

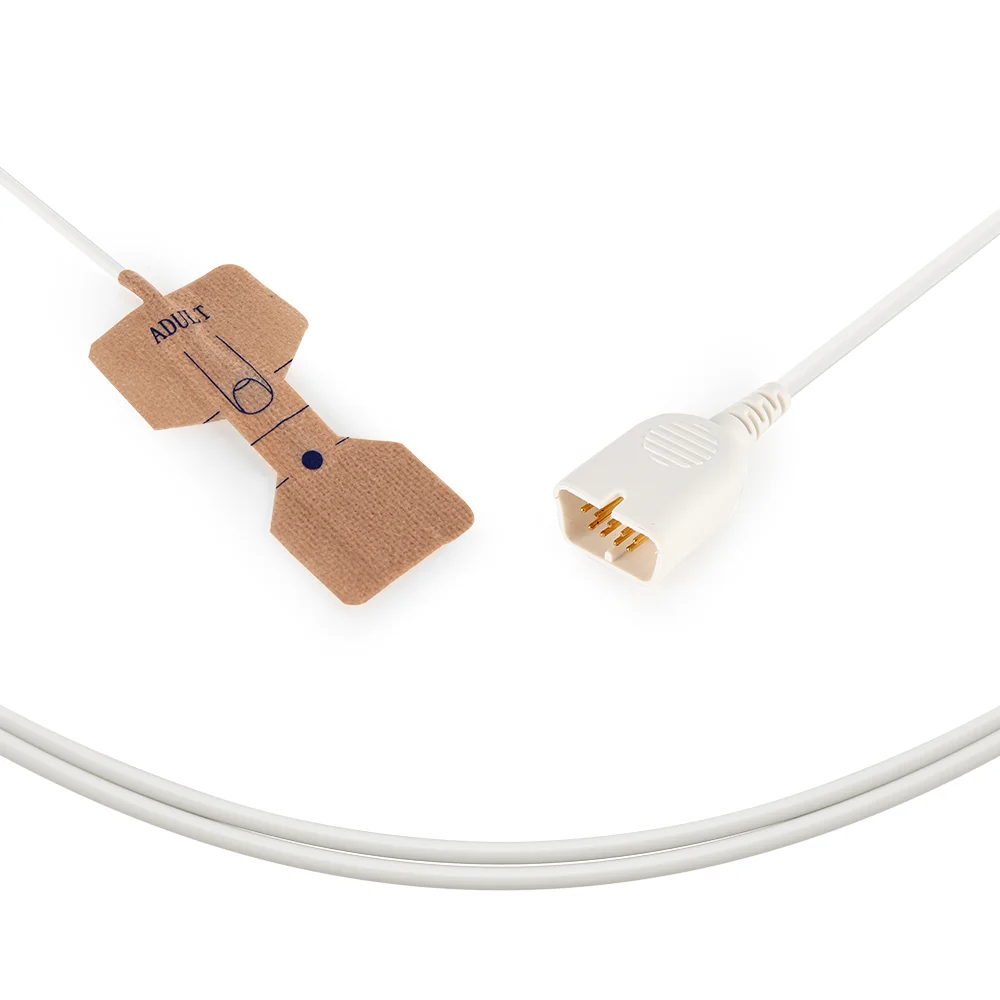

3. Caremed Product Pictures:
4. Caremed Product Test Report:
5. More Main Products from Caremed:
A. SpO2 Sensor, SpO2 Extension;
B. Holter ECG Cable;
C. ECG/EKG Cable, ECG/EKG Leadwire, ECG Electrodes;
D. IBP Transducer, IBP Cable;
E. NIBP Cuff, NIBP Hose;
F. Temperature Probe, Fetal Transducer, CTG Belt;
G. Ultrasound Transducer, Ultrasound Probe Repair.
All Compatible Brands Available for the above. (Contact Now, Save More)
