Masm M-LNCS 2515 Factory Disposable Spo2 Sensor 11pin Spo2 Probe Adhesive Tape for Neonate/Adult Medical Consumables EOS
Description
Caremed M Tech M-LNCS 2515 Neonate/Adult disposable spo2 sensor 11pin spo2 probe
1. Product Description:
|
Compatible Brand |
MLNCS |
||
|
Sensor Type |
Adult, Pediatric, Infant, Neonate; Blue Foam Non-adhesive, 1M Non-woven Adhesive, 1M White Foam Adhesive. |
||
|
Cable Material |
white PVC jacket, 3.2mm diameter |
Sensor Connector |
Plastic adapter with gold plated pins |
|
LED |
660nm/905nm/940nm |
Photo Detector |
4mm² /8mm²(size) |
|
Cable Length |
0.9m |
Package |
1pc in one ziplock bag |
2. Product Technical Parameters:
|
LED |
Red |
660nm normal |
|
Infrared |
880/905/940nm normal |
|
|
Text Range |
Oxygen Saturation(%SpO2) |
0% to 100% |
|
Pulse Rate(bpm) |
30 to 245 |
|
|
Accuracy |
SpO2 |
±1%(90~100%) |
|
±2%(80~90%) |
||
|
±3%(below 70%) |
||
|
Pulse Rate |
±2bpm(30-250bpm) |
|
|
Storage and Transport Environment |
-10℃~+40℃ |
|
|
Operating Temperature |
±5℃~+40℃ |
|
|
Operating/Storage/Transportation Humidity |
0%-80% |
|
|
Hyperbaric Pressure |
86kPa-106kPa |
|

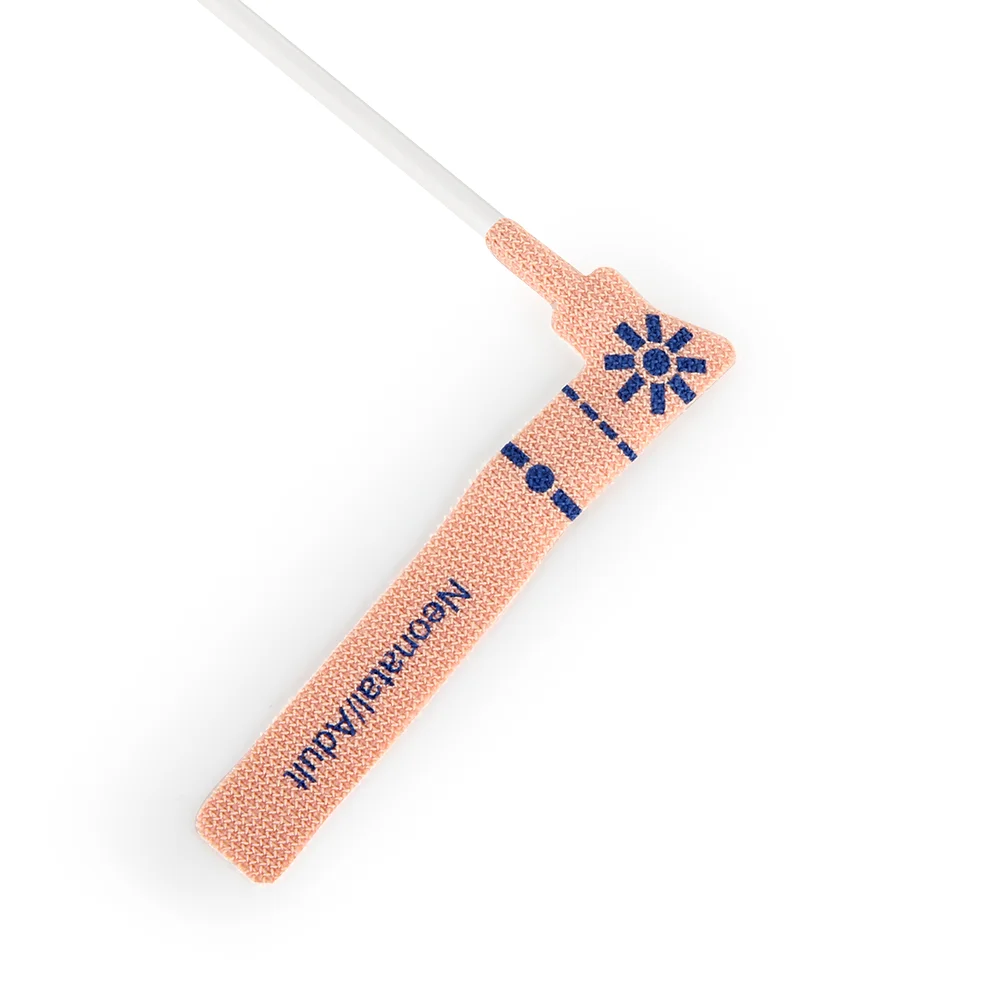

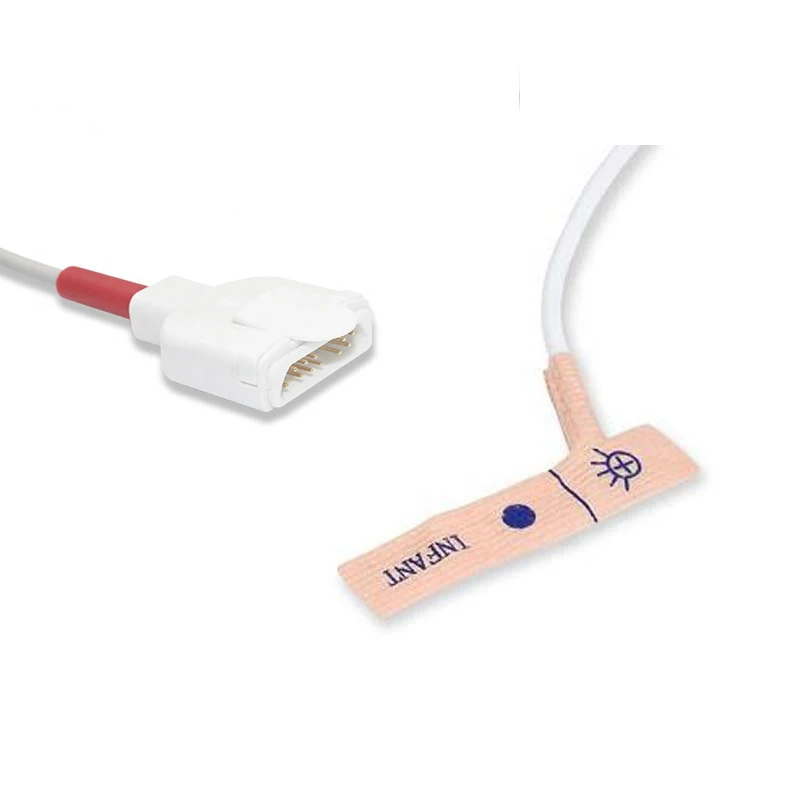

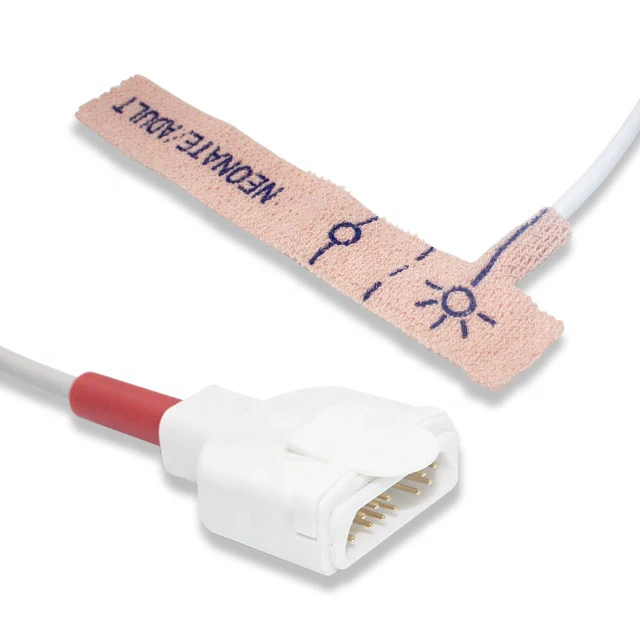

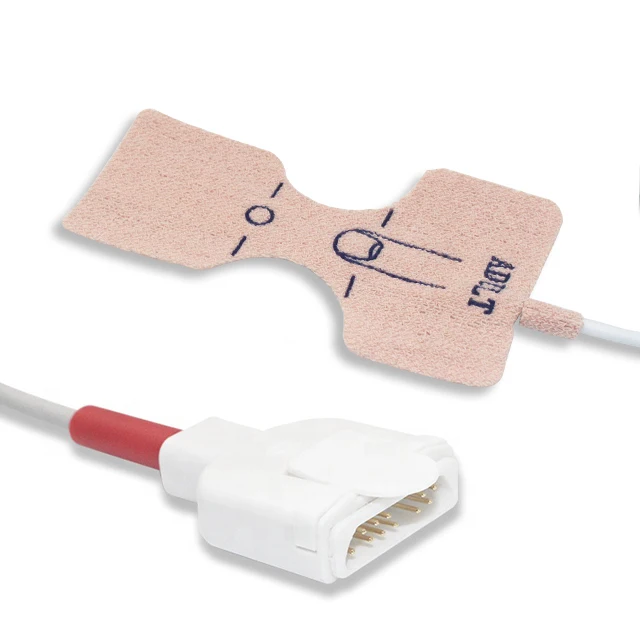

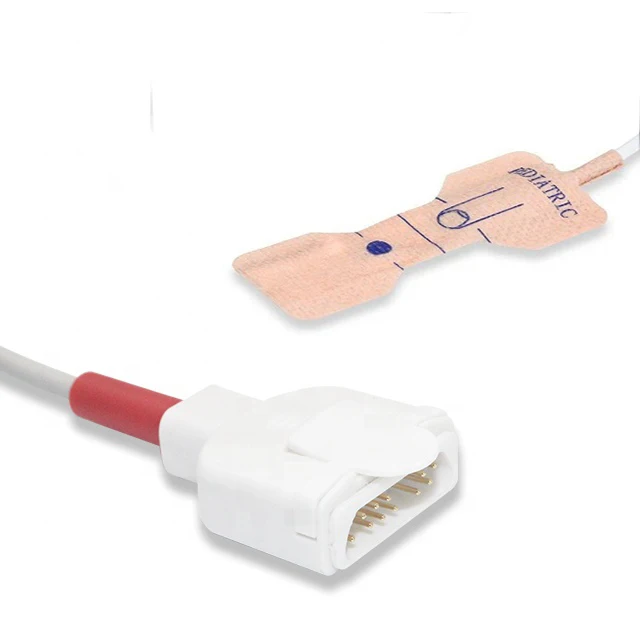

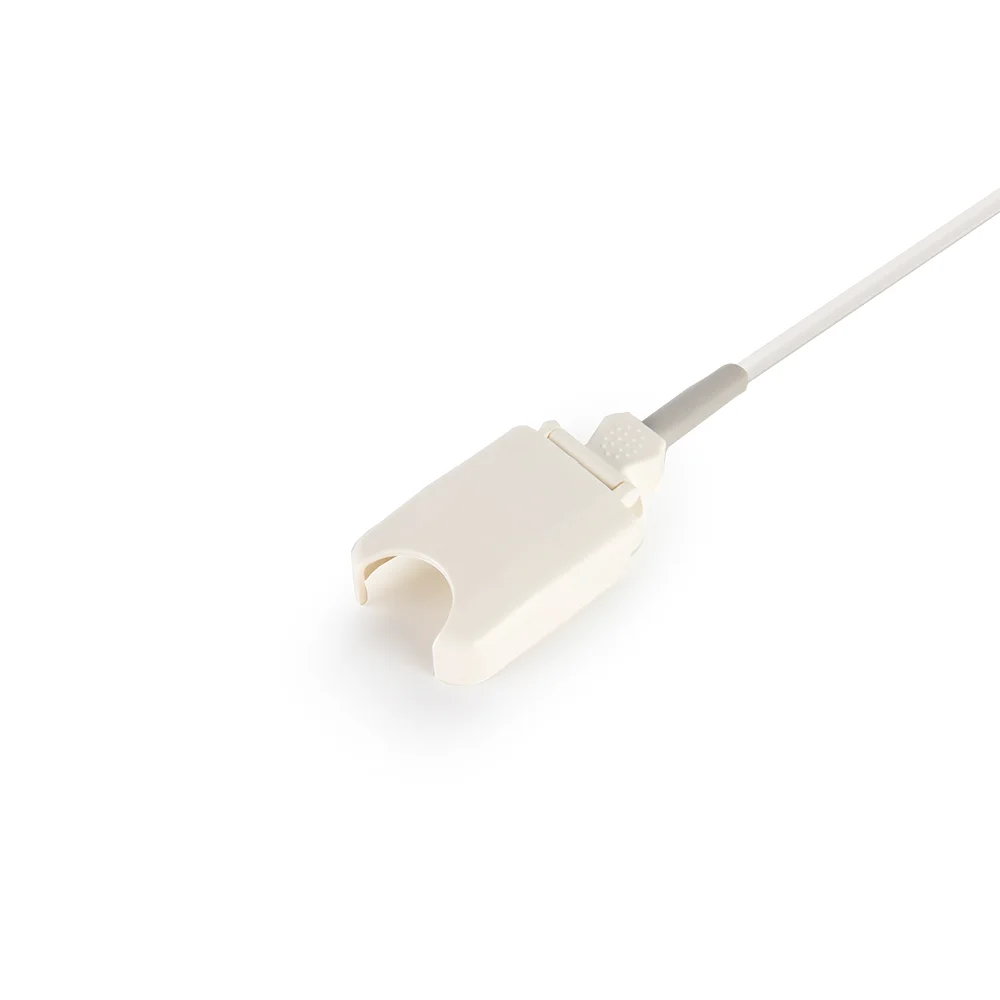

3. Caremed Product Pictures:
4. Caremed Product Test Report:
5. More Main Products from Caremed:
A. SpO2 Sensor, SpO2 Extension;
B. Holter ECG Cable;
C. ECG/EKG Cable, ECG/EKG Leadwire, ECG Electrodes;
D. IBP Transducer, IBP Cable;
E. NIBP Cuff, NIBP Hose;
F. Temperature Probe, Fetal Transducer, CTG Belt;
G. Ultrasound Transducer, Ultrasound Probe Repair.
All Compatible Brands Available for the above. (Contact Now, Save More)
