Factory Produced Non-Woven BCI Disposable SpO2 Sensor Adult/Child/Infant/Neonate Spo2 Probe 9pin
Description
Factory Non-woven Disposable BCI 9 PIN Adult/ Child/Infant/Neonate SpO2 sensor Compatible With BCI spo2 probe
Compatibility:
| Manufacturer | Model |
|---|---|
| Armstrong |
AD-1000, AD-2000, AD-3000, AD-4000, AD-900
|
| Artema SW |
Diascope
|
| Beijing Choice Electronic |
Pulse Oximeter model MD300I1
|
| ChoiceMMed |
HCSMD400, MD300I, MD300K1, MD300M, MMED6000DP-M3, MMED6000DP-M7, MMED6000DP-S6, MMED6000DP-SF
|
| Digicare |
Digimax 5500
|
| Draegers |
Oxipac 2000, Oxipac 2500
|
| Envitecc |
PulsiQuant 8040
|
| Goldway |
UT4000A
|
| Infinium |
Oxcyon II
|
| Invacare |
3300nv
|
| RGB Medical Devices |
Omicrom FT, Omicron PREMIUM
|
| Smiths Medical > BCI |
1300, 1301, 1302, 1303, 3100, 3101, 3180, 3300, 3301, 3302, 3303, 3304, 3400, 3401, 3403, 6100, 9100, Advisor, Autocorr, Capnocheck 9004, Mini Torr, Mini Torr Plus, Spectro 10, Spectro 20, Spectro2 10, Spectro2 20, Spectro2 30, SurgiVet
|
| Spacelabs |
PRO2
|
| Weinmann |
Oxycount Mini
|
1. Product Description:
|
Compatible Brand |
Most of oximax tech monitor | ||
|
Sensor Type |
Adult, Pediatric, Infant, Neonate; Blue Foam Non-adhesive, 1M Non-woven Adhesive, 1M White Foam Adhesive. |
||
|
Cable Material |
white PVC jacket, 3.2mm diameter |

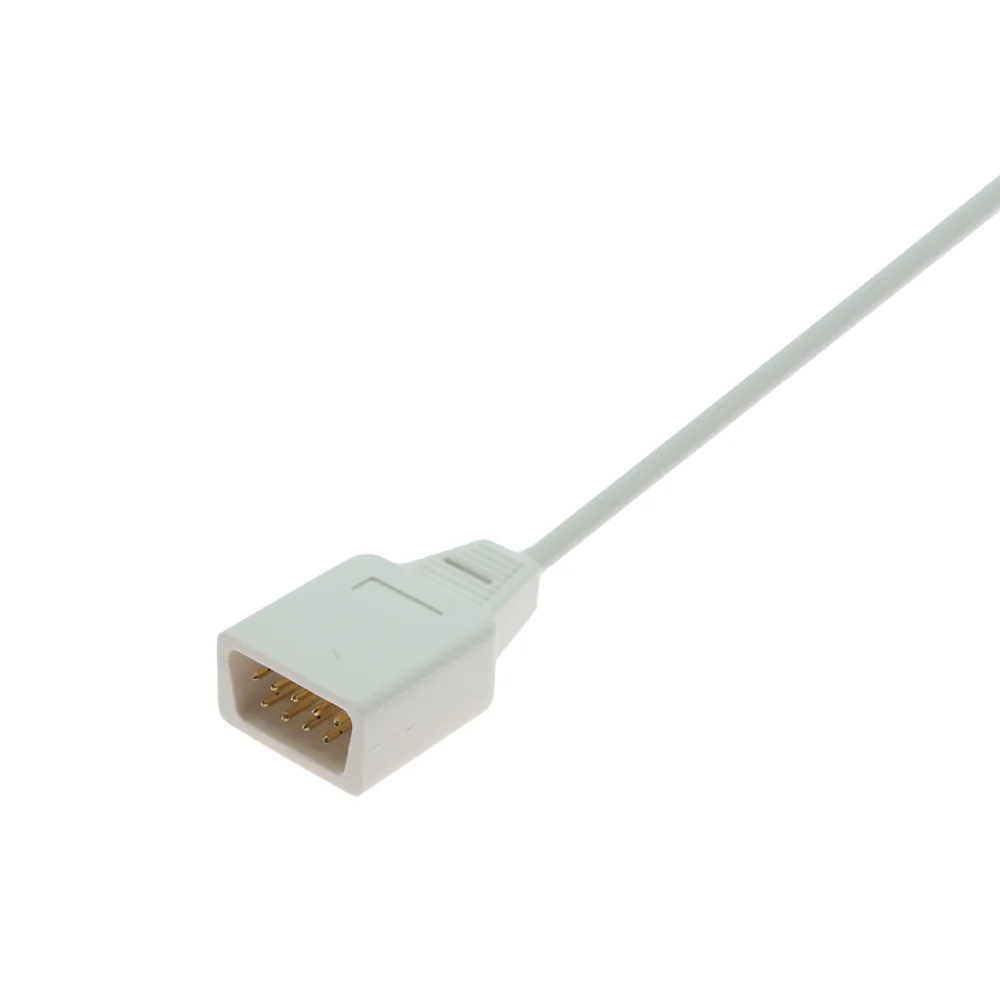

Sensor Connector |
Plastic adapter with gold plated pins |
|
LED |
660nm/905nm/940nm |
Photo Detector |
4mm² /8mm²(size) |
|
Cable Length |
0.9m |
Package |
1pc in one ziplock bag |
2. Product Technical Parameters:
|
LED |
Red |
660nm normal |
|
Infrared |
880/905/940nm normal |
|
|
Text Range |
Oxygen Saturation(%SpO2) |
0% to 100% |
|
Pulse Rate(bpm) |
30 to 245 |
|
|
Accuracy |
SpO2 |
±1%(90~100%) |
|
±2%(80~90%) |
||
|
±3%(below 70%) |
||
|
Pulse Rate |
±2bpm(30-250bpm) |
|
|
Storage and Transport Environment |
-10℃~+40℃ |
|
|
Operating Temperature |
±5℃~+40℃ |
|
|
Operating/Storage/Transportation Humidity |
0%-80% |
|
|
Hyperbaric Pressure |
86kPa-106kPa |
|

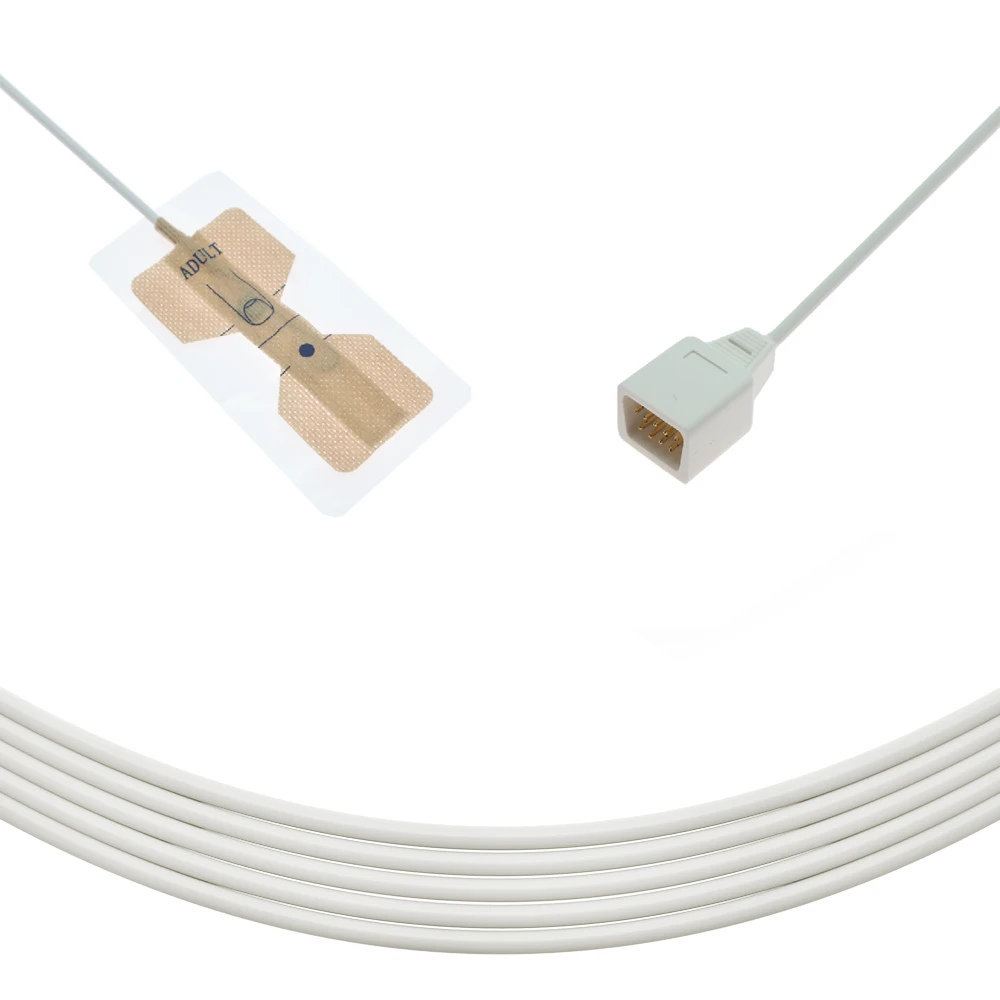

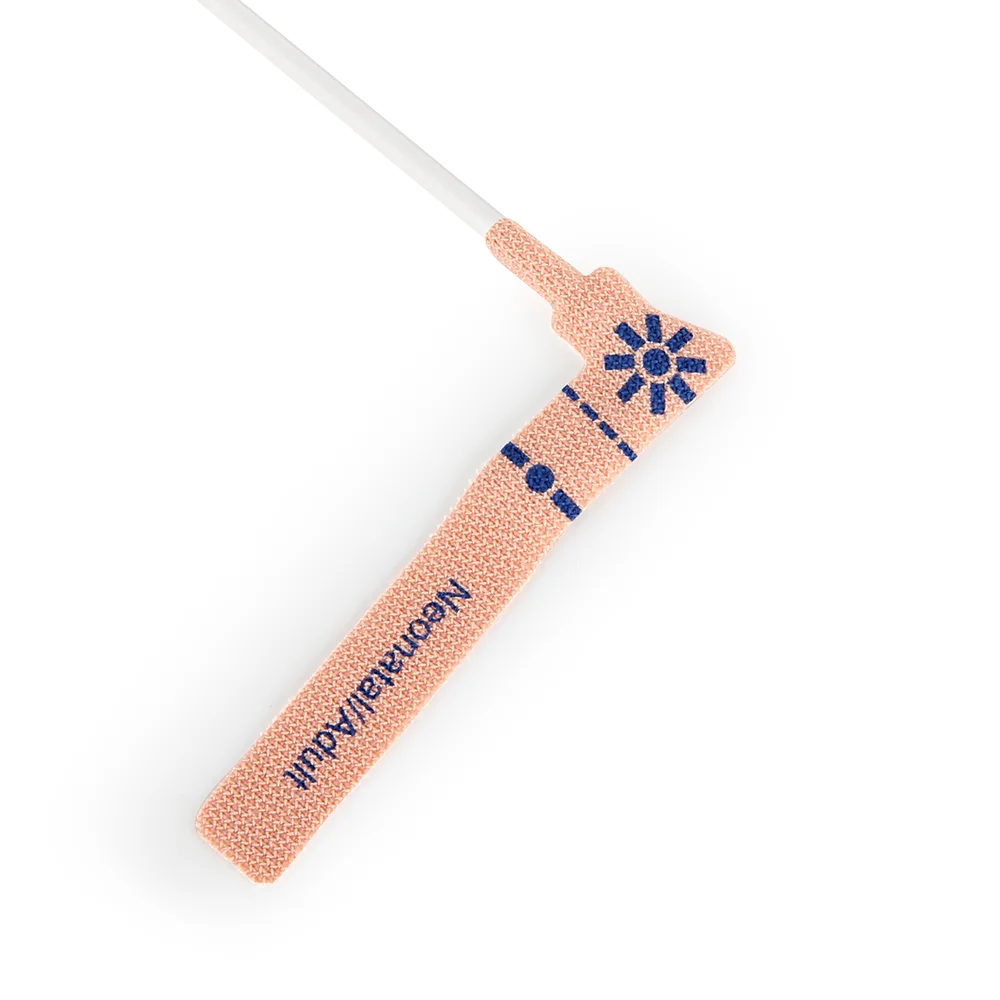

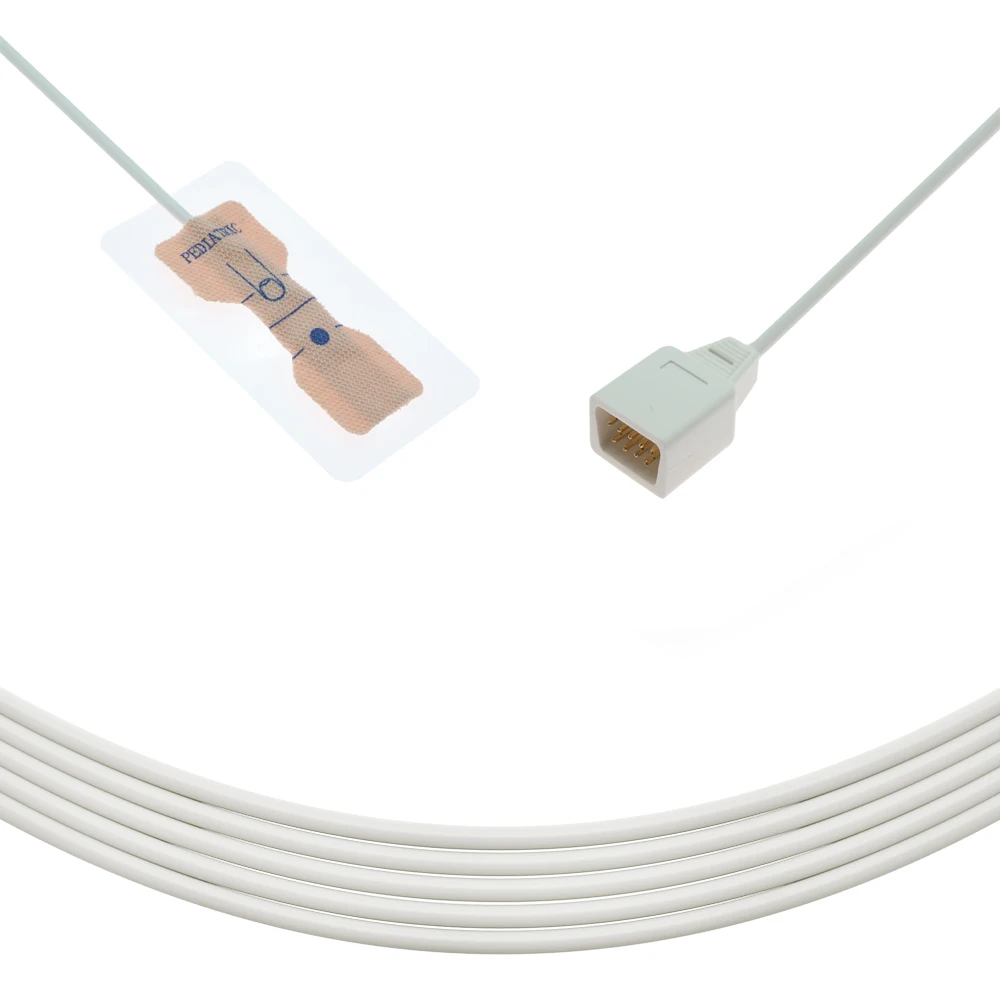

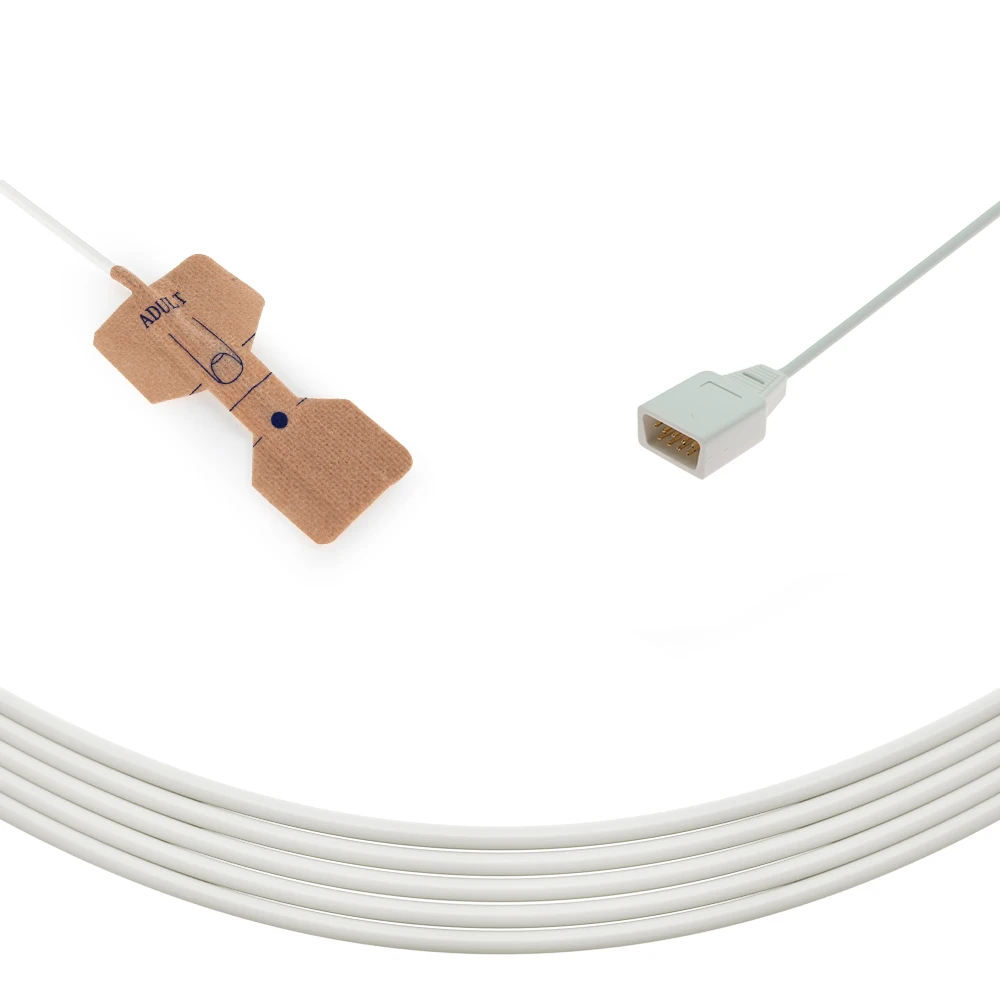

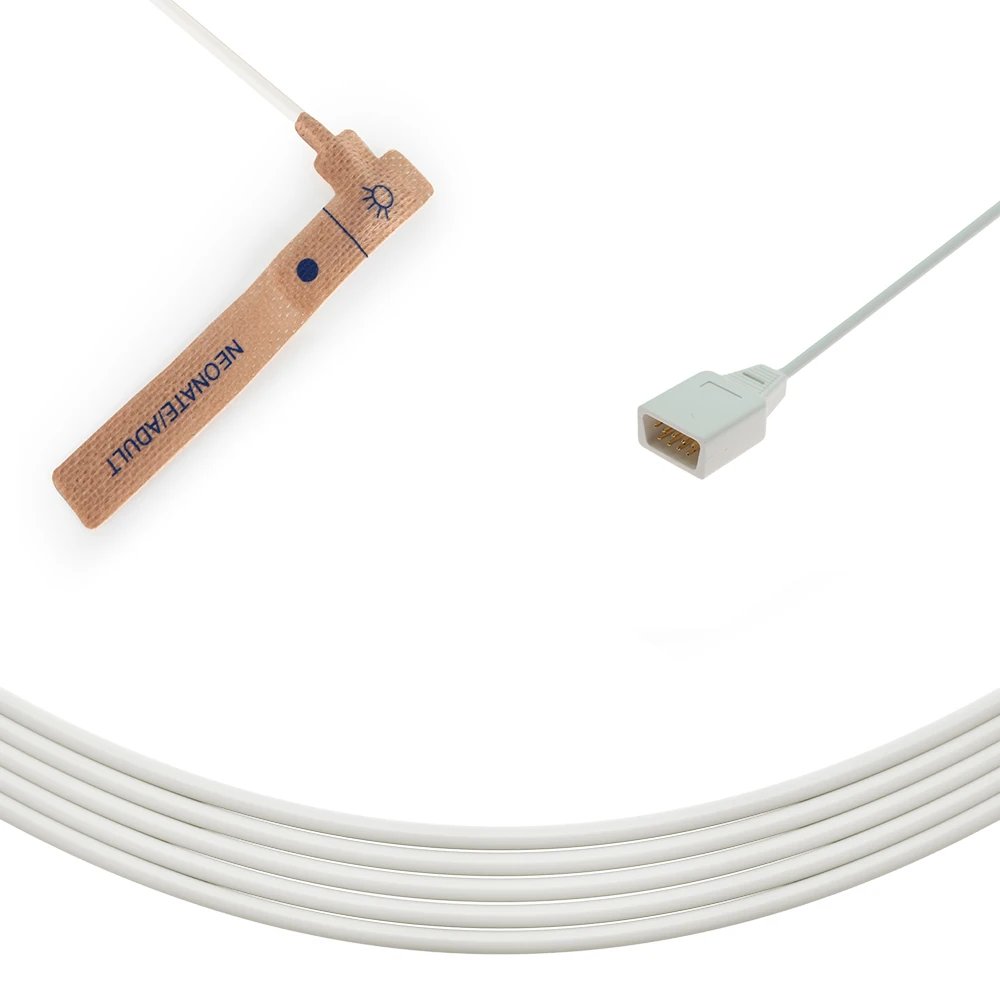

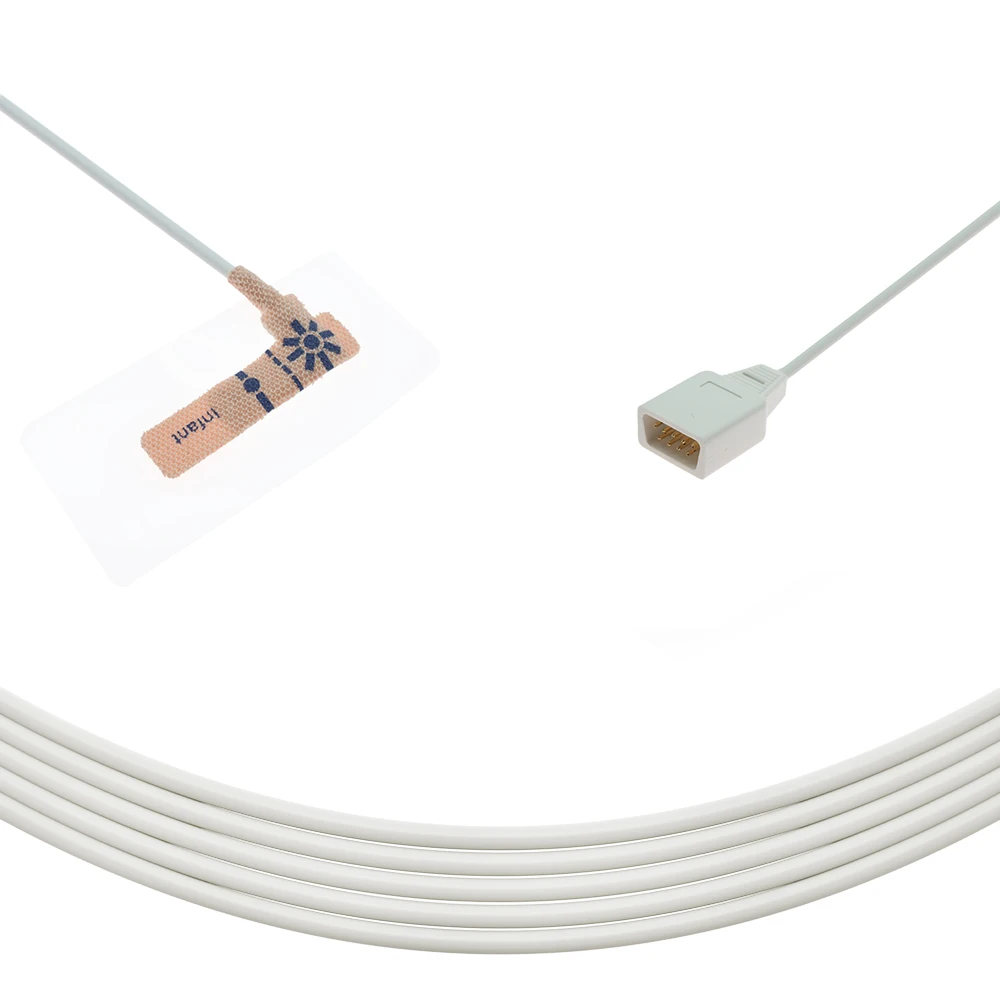

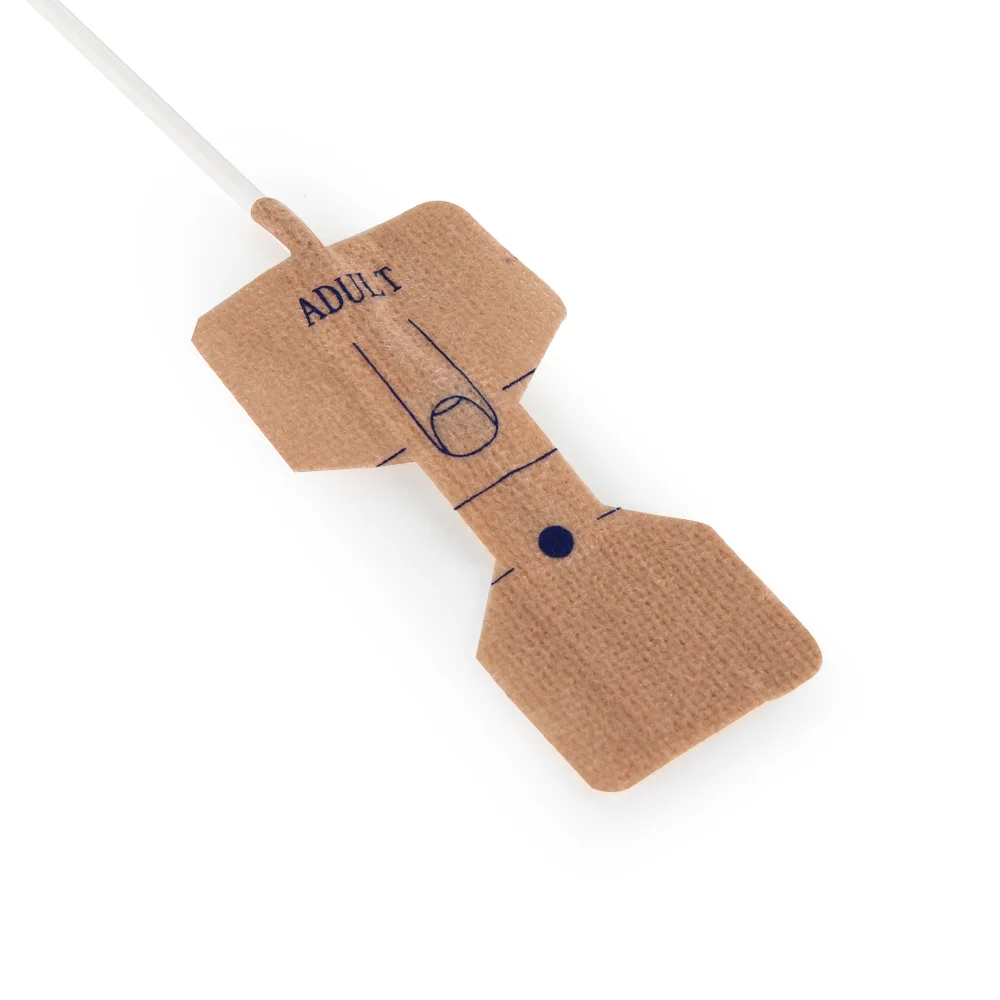

3. Caremed Product Pictures:
4. Caremed Product Test Report:
5. More Main Products from Caremed:
A. SpO2 Sensor, SpO2 Extension;
B. Holter ECG Cable;
C. ECG/EKG Cable, ECG/EKG Leadwire, ECG Electrodes;
D. IBP Transducer, IBP Cable;
E. NIBP Cuff, NIBP Hose;
F. Temperature Probe, Fetal Transducer, CTG Belt;
G. Ultrasound Transducer, Ultrasound Probe Repair.
All Compatible Brands Available for the above. (Contact Now, Save More)
