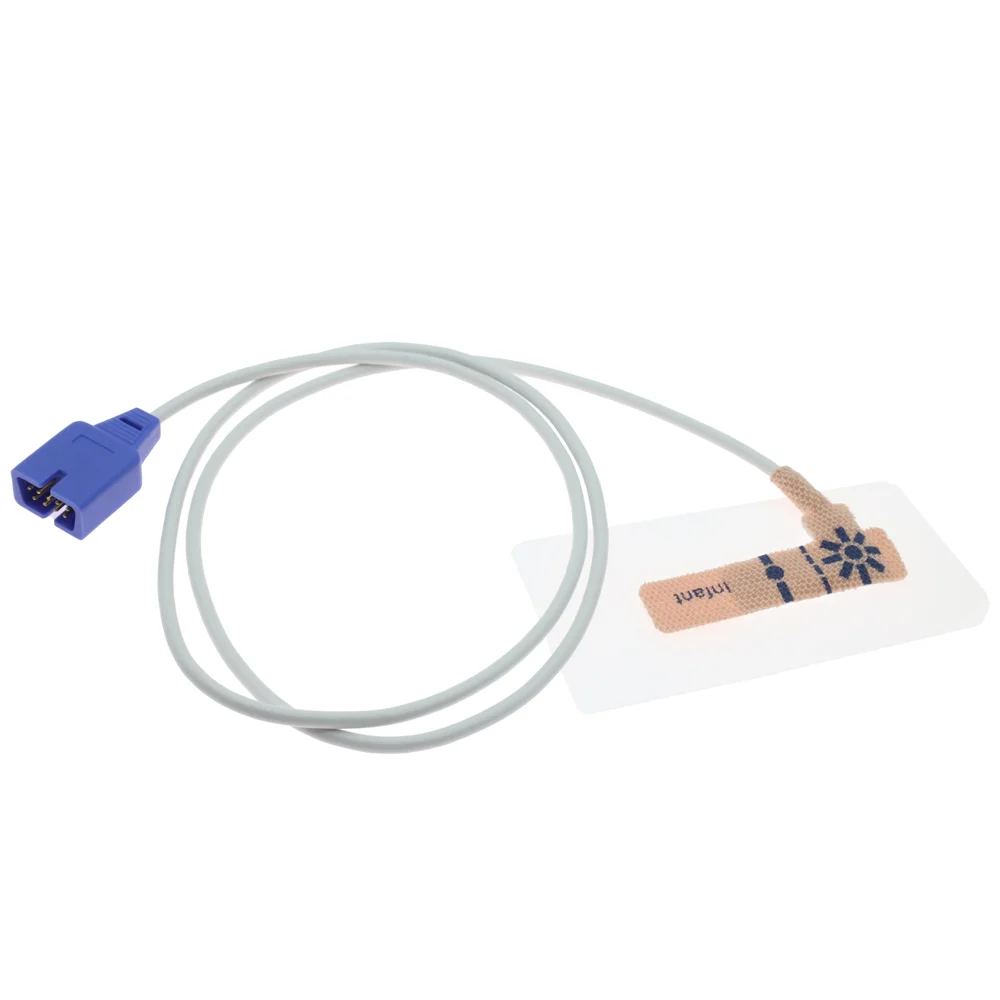

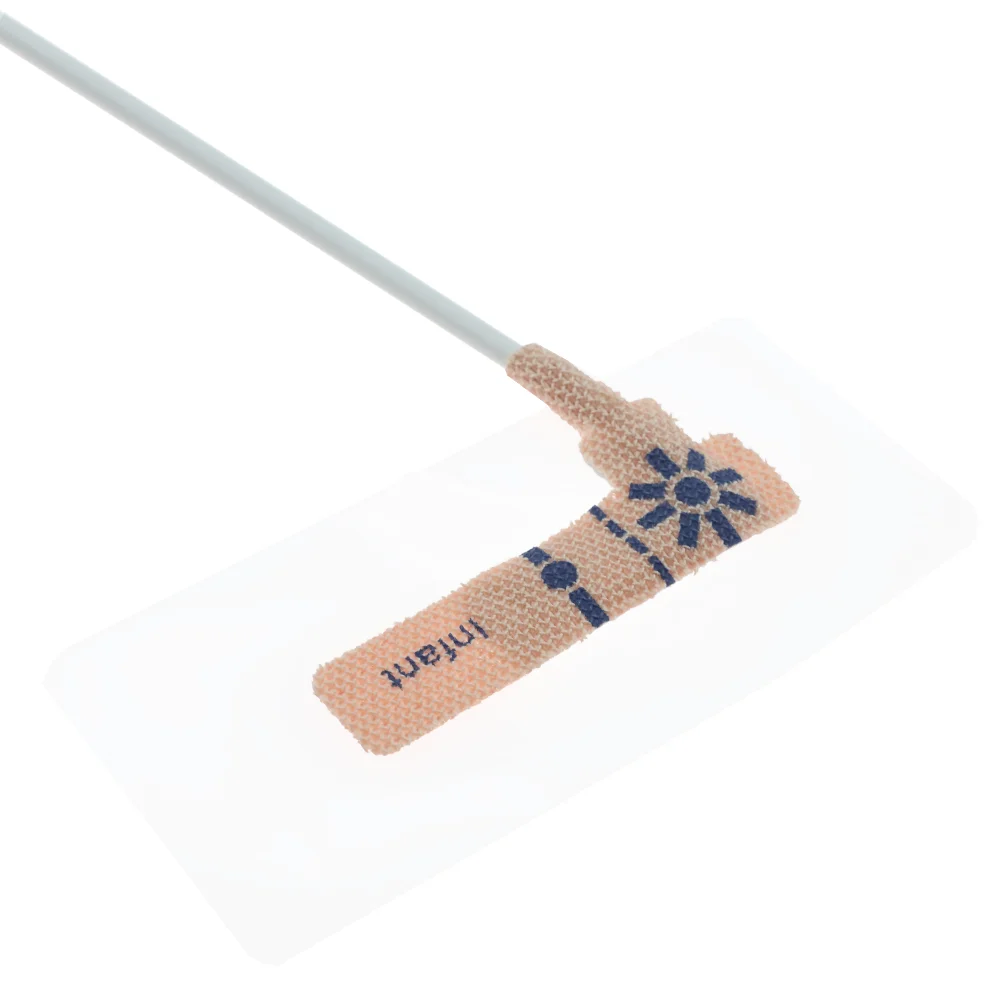

Compatible for MAX-I/ MAX-I-I Disposable Infant 9Pin D-Sub Probe SPO2 Sensor Pulse Oxygen Monitor Sensor for Spo2 Sensor
Description
Compatible for MAX-I/ MAX-I-I Disposable Infant 9Pin D-Sub Probe SPO2 Sensor Pulse Oxygen monitor sensor for Spo2 sensor
1. Product Description:
OEM Part Number Cross References:
| Manufacturer | OEM Part # |
|---|---|
| Covidien > Nelcor | MAX-I, MAX-I-I |
| Dragerr | MX50067 |
| GE Healthcare > Marquette | 70124026 |
| Mindrray > Datascope | 0010-10-12204 |
| Sage | DP063X-09M |
| Stryker > Medtronic > Physio Control | 11996-000115 |
|
Compatible Brand |
Nelcor |
||
|
Sensor Type |

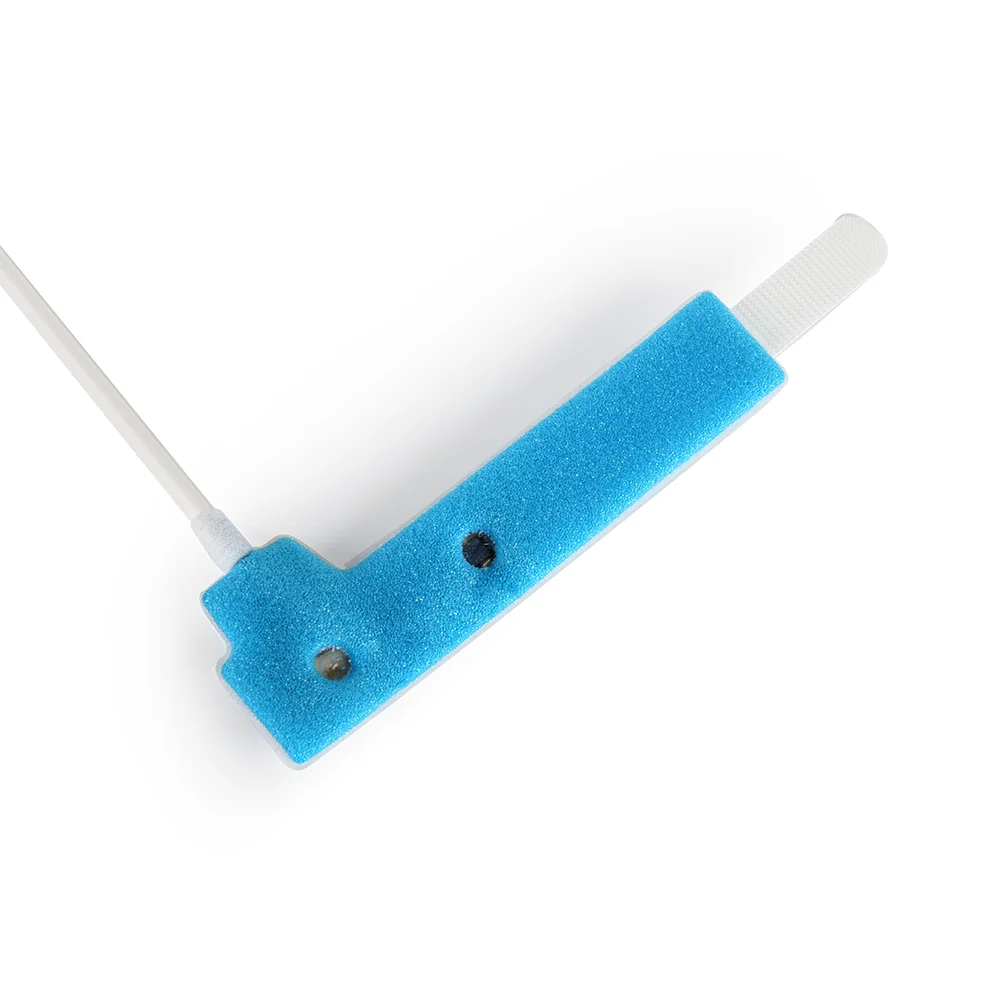

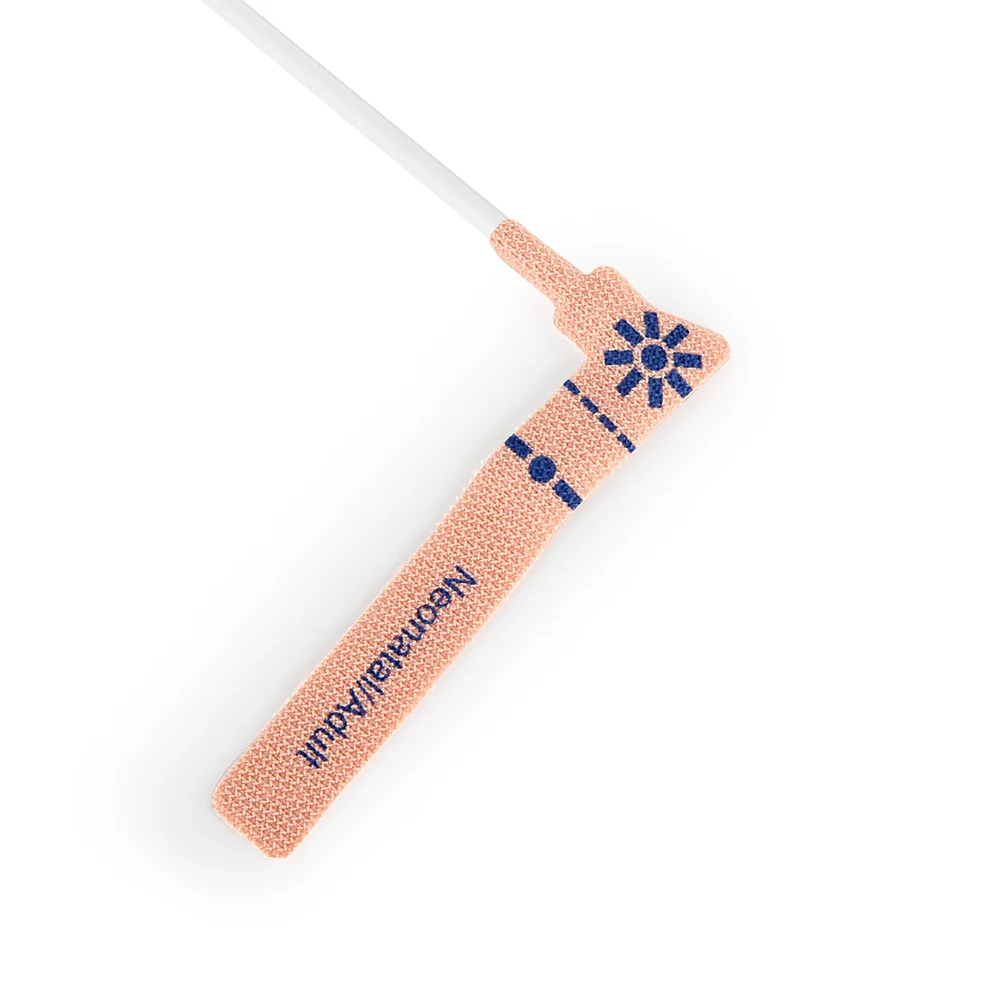

Adult, Pediatric, Infant, Neonate; Blue Foam Non-adhesive, 3M Non-woven Adhesive, 3M White Foam Adhesive. |
||
|
Cable Material |
white PVC jacket, 3.2mm diameter |

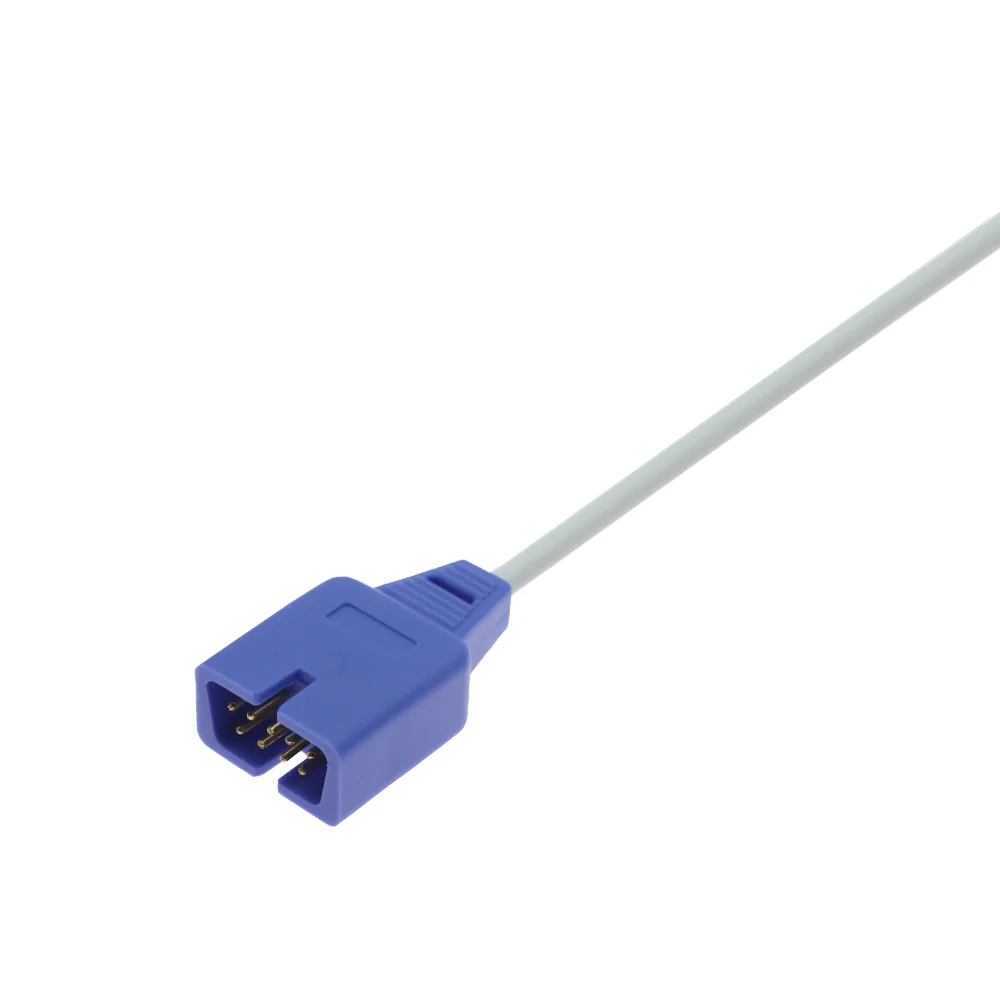

Sensor Connector |
Plastic adapter with gold plated pins |
|
LED |
660nm/905nm/940nm |
Photo Detector |
4mm² /8mm²(size) |
|
Cable Length |
0.9m |
Package |
1pc in one ziplock bag |
2. Product Technical Parameters:
|
LED |
Red |
660nm normal |
|
Infrared |
880/905/940nm normal |
|
|
Text Range |
Oxygen Saturation(%SpO2) |
0% to 100% |
|
Pulse Rate(bpm) |
30 to 245 |
|
|
Accuracy |
SpO2 |
±1%(90~100%) |
|
±2%(80~90%) |
||
|
±3%(below 70%) |
||
|
Pulse Rate |
±2bpm(30-250bpm) |
|
|
Storage and Transport Environment |
-10℃~+40℃ |
|
|
Operating Temperature |
±5℃~+40℃ |
|
|
Operating/Storage/Transportation Humidity |
0%-80% |
|
|
Hyperbaric Pressure |
86kPa-106kPa |
|
3. Caremed Product Pictures:
4. Caremed Product Test Report:
5. More Main Products from Caremed:
A. SpO2 Sensor, SpO2 Extension;
B. Holter ECG Cable;
C. ECG/EKG Cable, ECG/EKG Leadwire, ECG Electrodes;
D. IBP Transducer, IBP Cable;
E. NIBP Cuff, NIBP Hose;
F. Temperature Probe, Fetal Transducer, CTG Belt;
G. Ultrasound Transducer, Ultrasound Probe Repair.
